CM Series

Free assembly,Creativity.

The CM series is a new generation of intelligent LED display products, covers indoor and semi-outdoor applications. With the core positioning of "ultra-energy-saving, ultra-thin and light, ultra-bright, and full-scene creative splicing", it aims to provide more efficient and creative lighting display solutions for commercial complexes, transportation hubs, indoor venues, cultural and entertainment fields, etc.

Support

Download

Connect

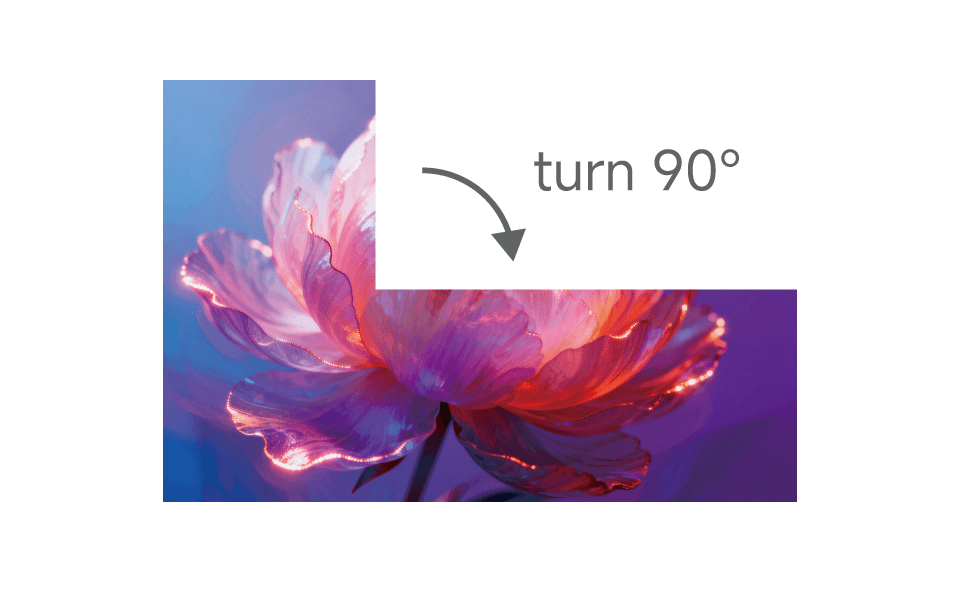

Multiple cabinet + 90° rotation

4 standard + 3 after rotation are totaling 7 cabinet, can meet various large and small screen without affected the effect after rotated

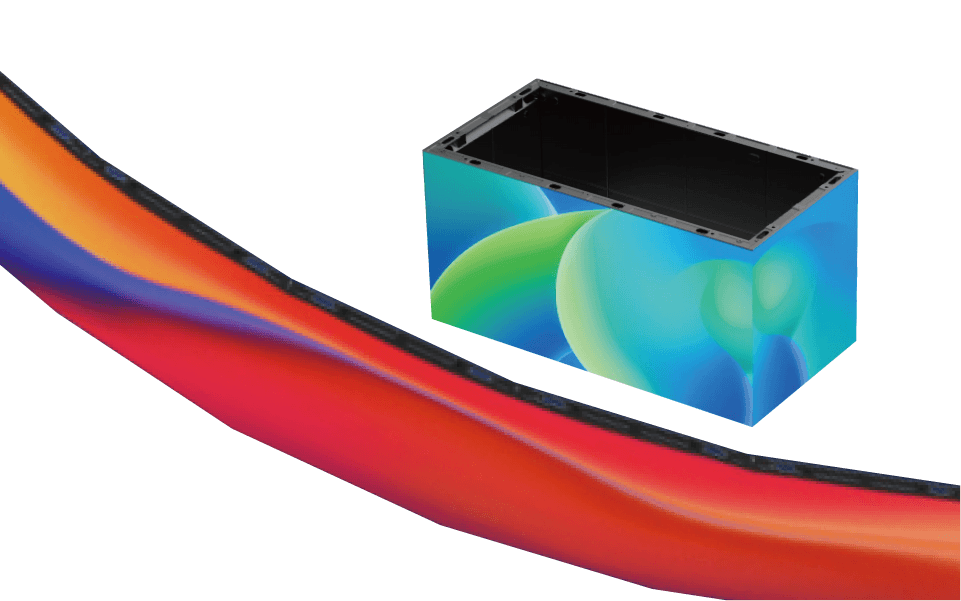

Creative shape

Supports wall-mounted / hanging / stacking, supports arc-shaped / right-angle / offset splicing, flexibly adapting to different scenes and creative shapes.

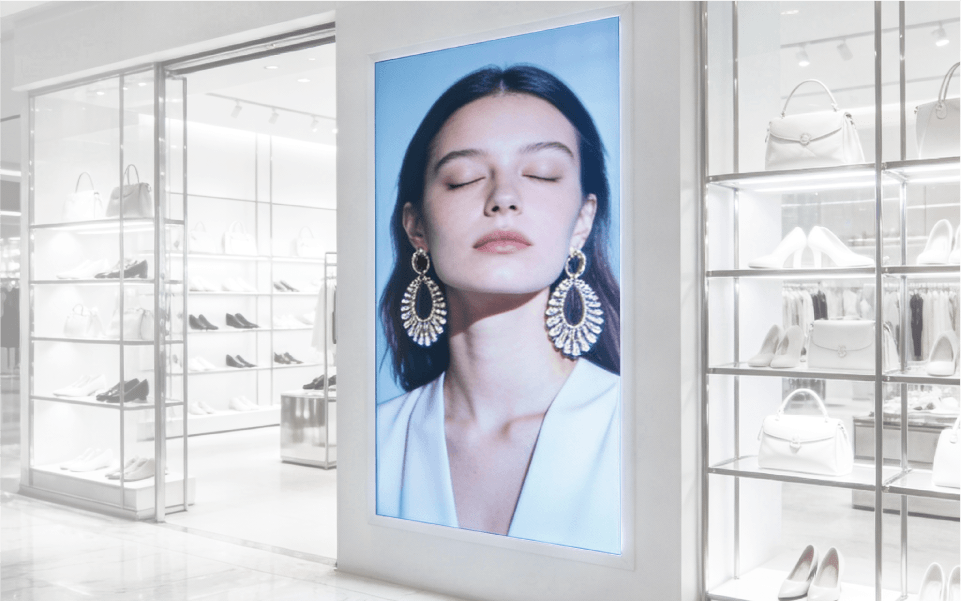

Indoor and semi-outdoor scene application

The product has two brightness options of 600 and 4500, which can be installed indoors and face both indoor and outdoor audiences.

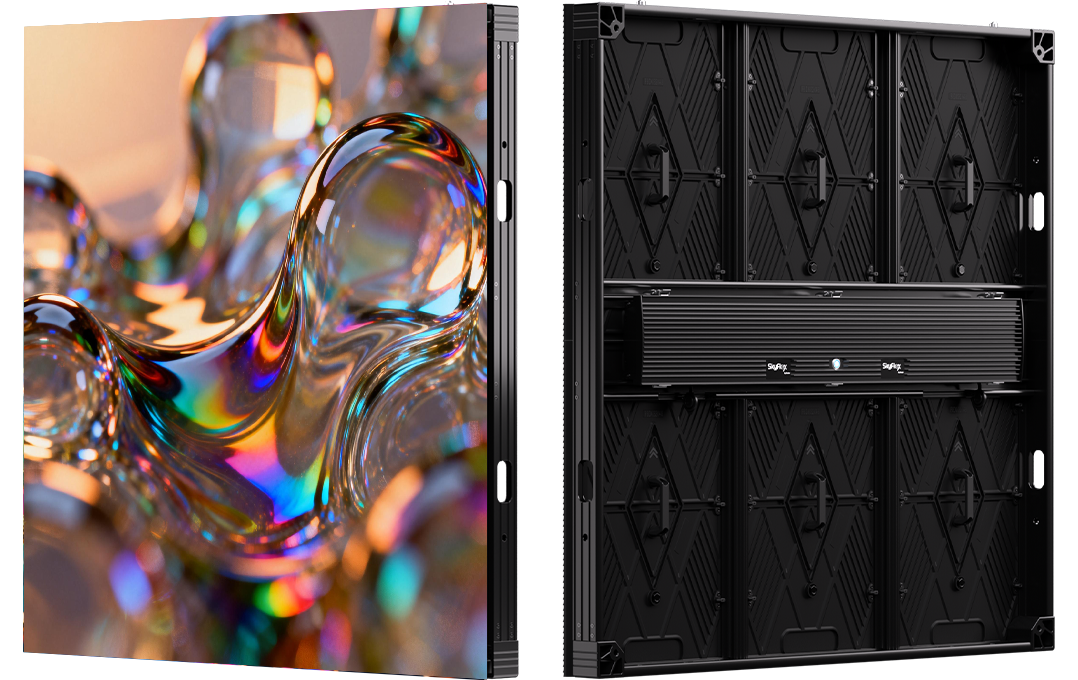

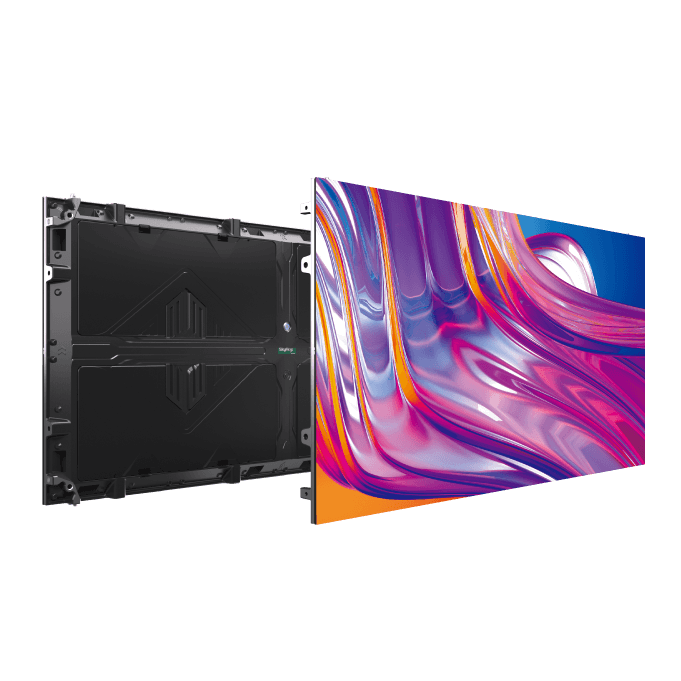

Ultra-light and ultra-thin design

The cabinet is lightweight, with a thickness of only 35mm, and can be perfectly hung on the building wall.

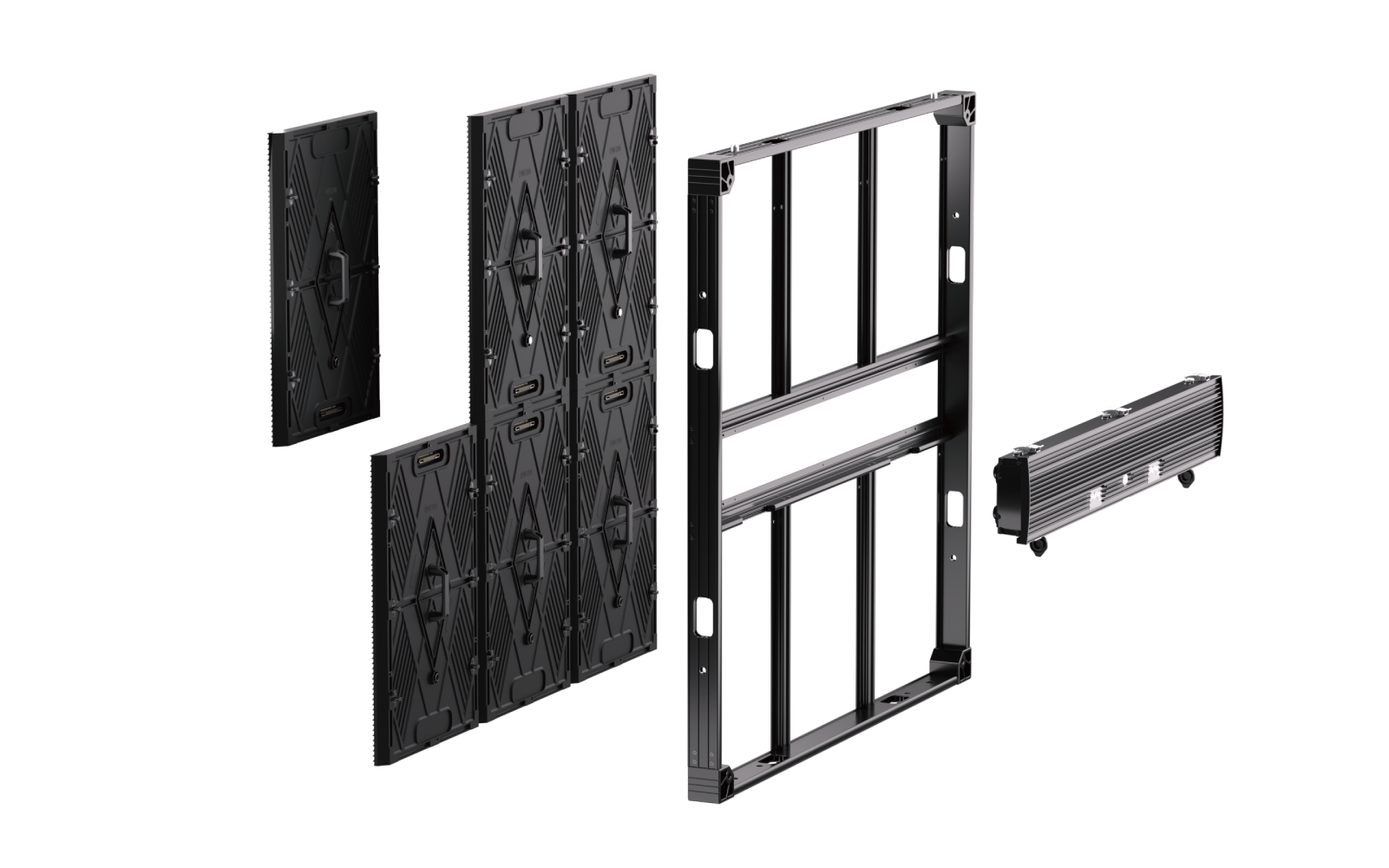

Front and rear maintenance design

The module / receiving card / power supply and other components can be maintained from both the front and rear. The internal hard connection design is fashionable, simple and stable, expanding the application of display windows.

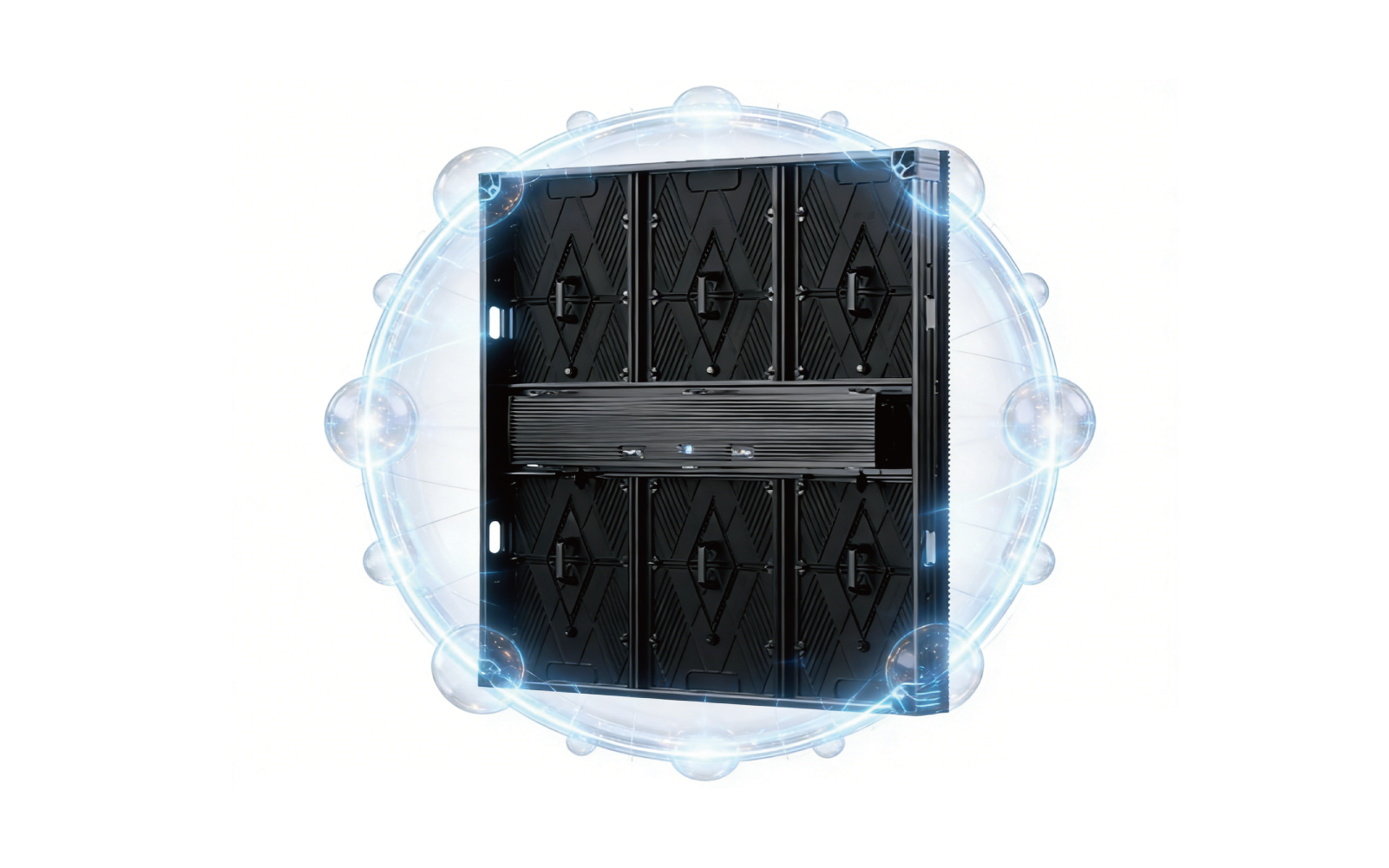

Stable and reliable

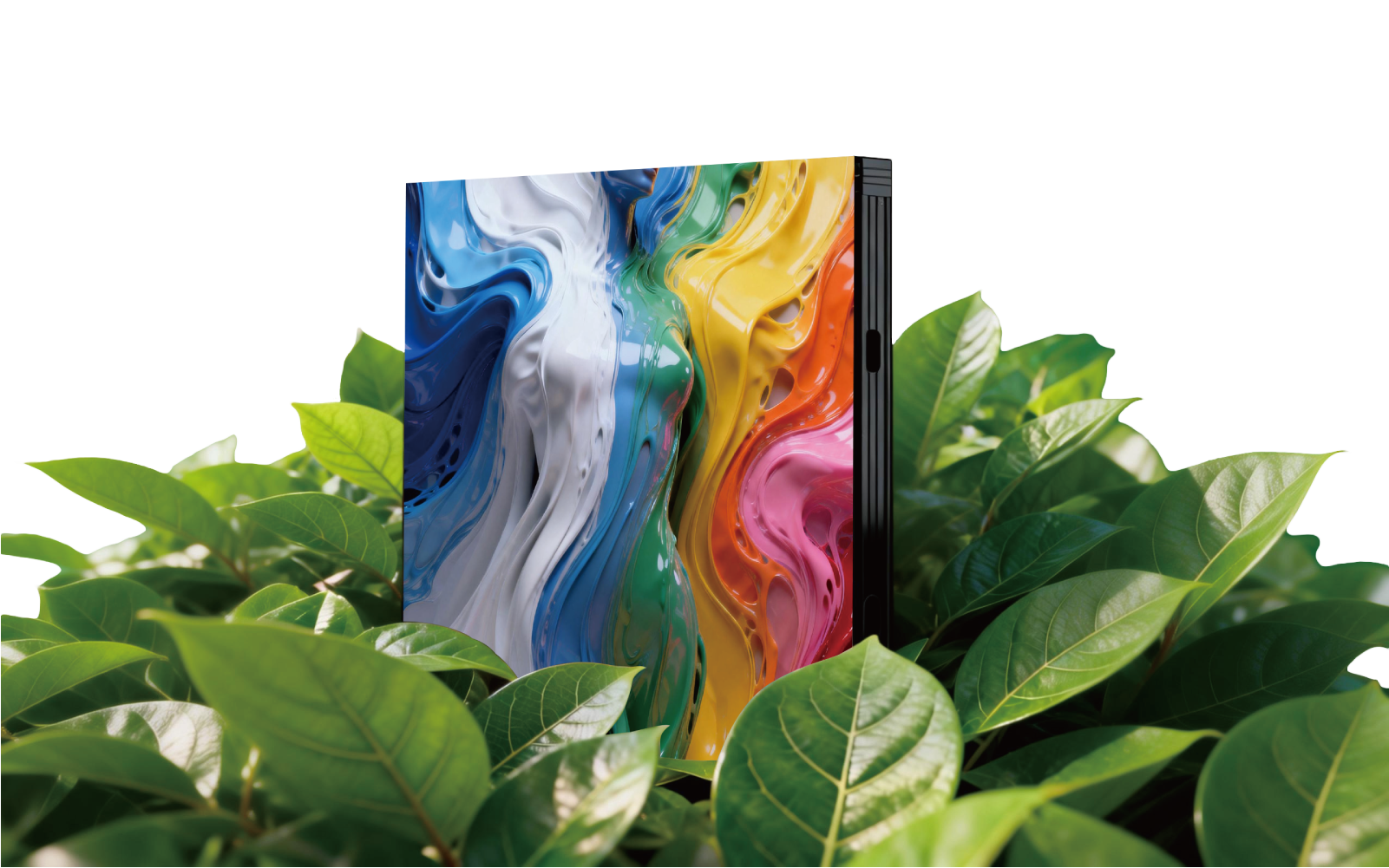

Equipped with the third-generation energy-saving technology of DCD, reducing operating costs. Dual backup of power supply and signal ensures the smooth progress of live broadcasts.

Specification

CM Series

Product	CM Series
Pixel Pitch (mm)	1.2	1.5	1.9	2.5	3.91
LED Package	SMD1010	SMD1212	SMD1212	SMD1515	SMD2020
Cabinet Size (mm)	1000x500/500x500/250x750/250x500 500x1000/750x250/500x250
Module Dimension (mm)	250x250
Cabinet Weight (Kg/pc)	1000500:9.5kg / 500500:4.6kg /250750:3.7kg / 250500: 2.6kg
Brightness (Nit)	600	600	800/4500	800/4500	800/4500
Refresh Rate(Hz)	≥3840Hz	≥3840Hz	≥7680Hz	≥7680Hz	≥7680Hz
Gray Scale(Bit)	14	14	15	16	16
Maintenance Method	Front‑ & Rear‑Service
Power Consumption(W）	440/148	362/121	430/142 480/160	390/137 480/160	348/116 416/140
IP Rating	IP43
Certifications	CE\ETL\FCC
※ Specifications are subject to change without prior notice. Please refer to the actual product.

The product images and screen contents on this page are for illustrative purposes only. Actual product appearance (including but not limited to design, color, and dimensions) and screen display contents (including but not limited to backgrounds, UI, and illustrations) may slightly vary. Please refer to the actual product.

The CM Series includes the following models: CM-121、CM-151、CM-191、CM-251、CM-391. The barcode encoding rule on the back of the product module is as follows: PXL8 MP-260V2 DC250101XX-X 000X. Here, “PXL8” represents the factory identification and verification code, “MP-260V2” indicates the product model, “DC250101XX-X” is the order number, and “000X” represents the module’s sequential code. (Note: “X” indicates a specific number.)
