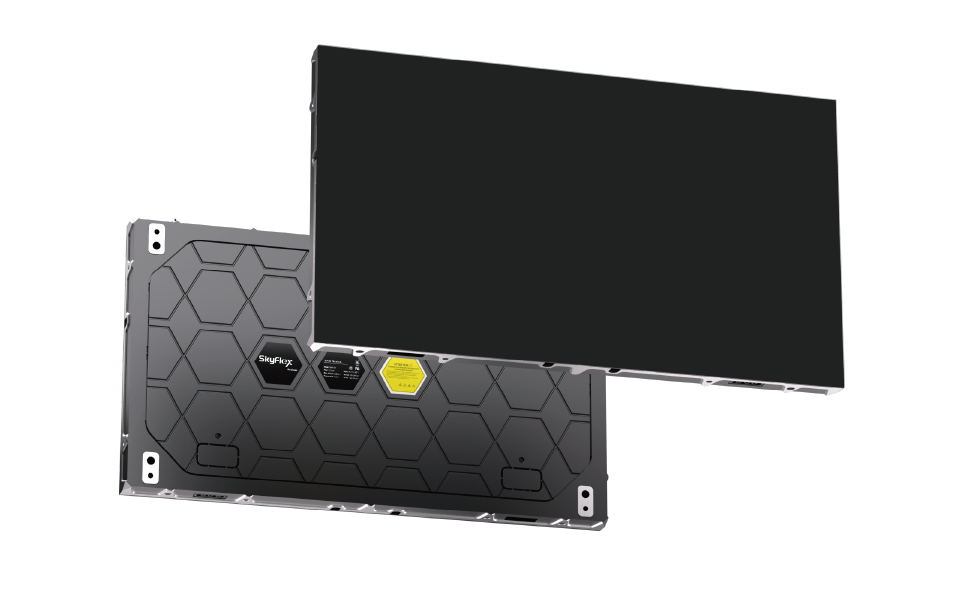

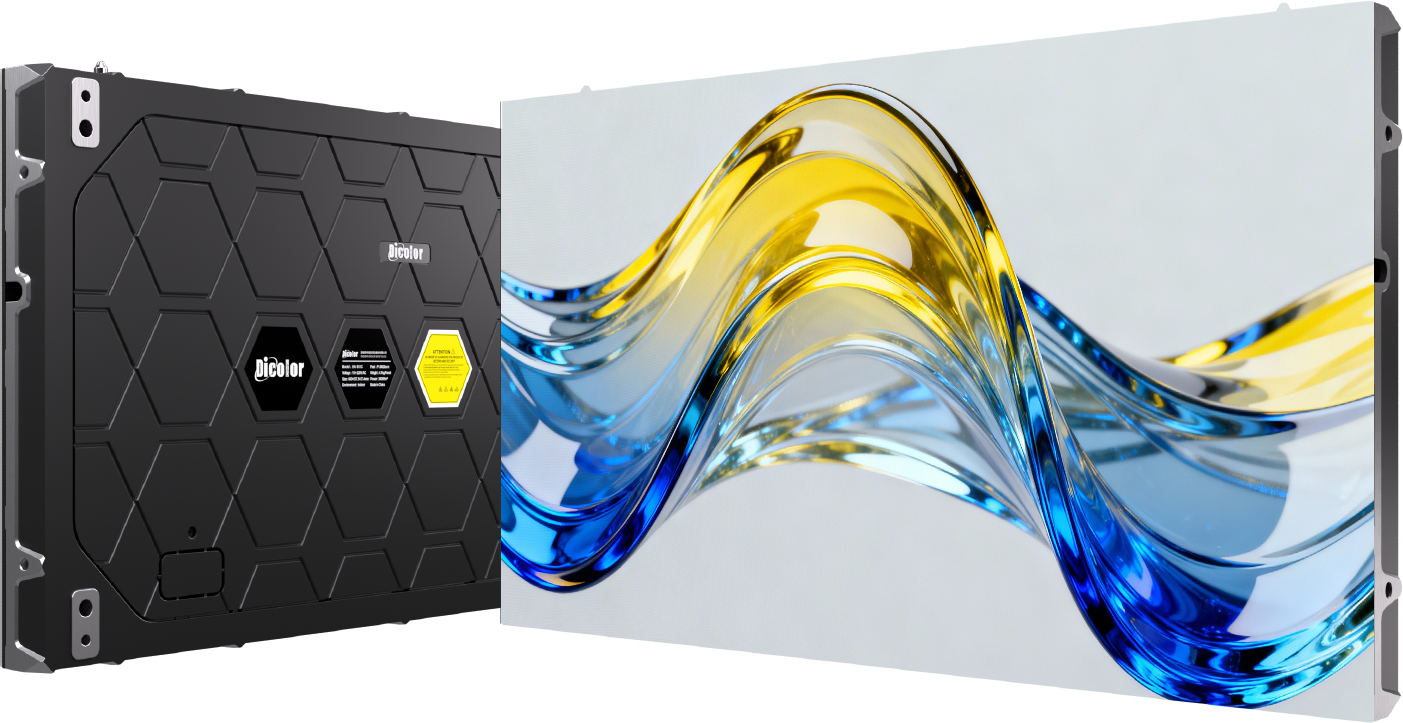

HA-C02 Series

Ultra-High-Definition Indoor COB Fine-Pitch LED Display.

The HA-C02 series is an ultra-high-definition indoor COB fine-pitch LED display, designed to deliver exceptional clarity and vibrant visuals. With advanced COB technology, it offers superior durability, seamless viewing, and perfect color accuracy, making it ideal for high-end commercial spaces, control rooms, and premium events.

Support

Download

Connect

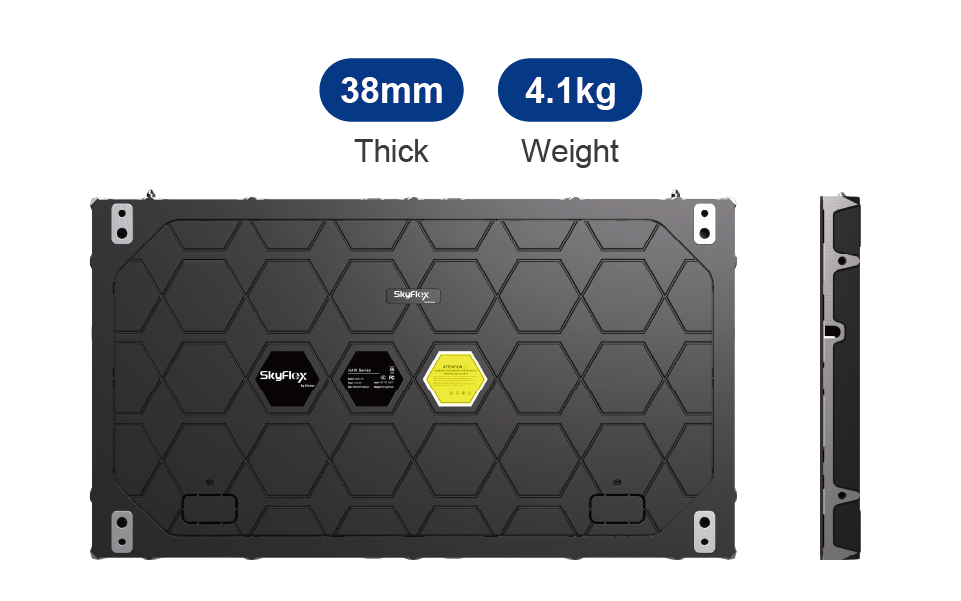

Extremely Light And Slim

Adopt die-casting modular design, 16:9 ratio design, cabinet width only 38 mm, saving the installation space and edge covering cost.

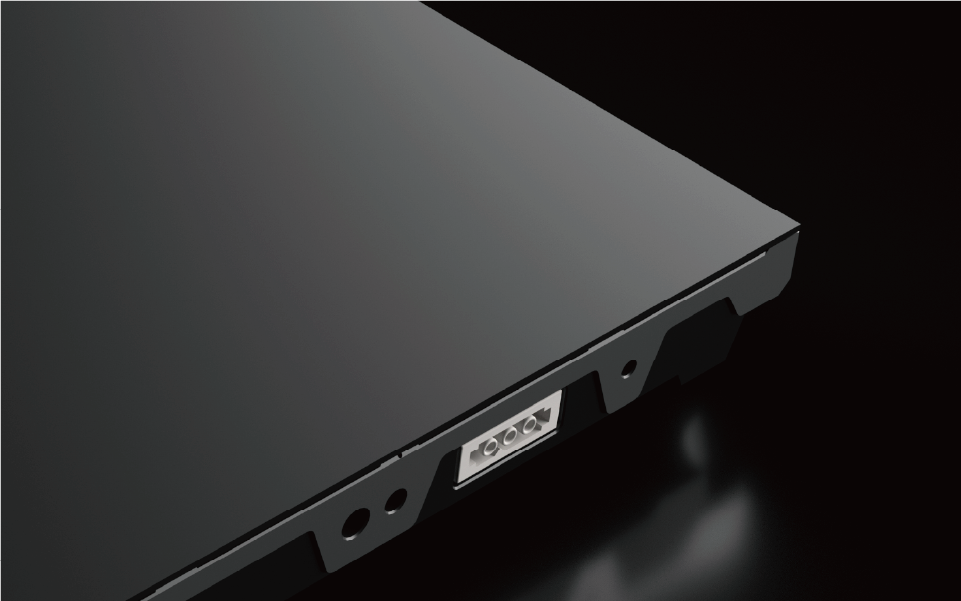

Seamless Display

Patent surface treatment technology, ultra-high ink color consistency and flatness, the display panel does not reflect light.

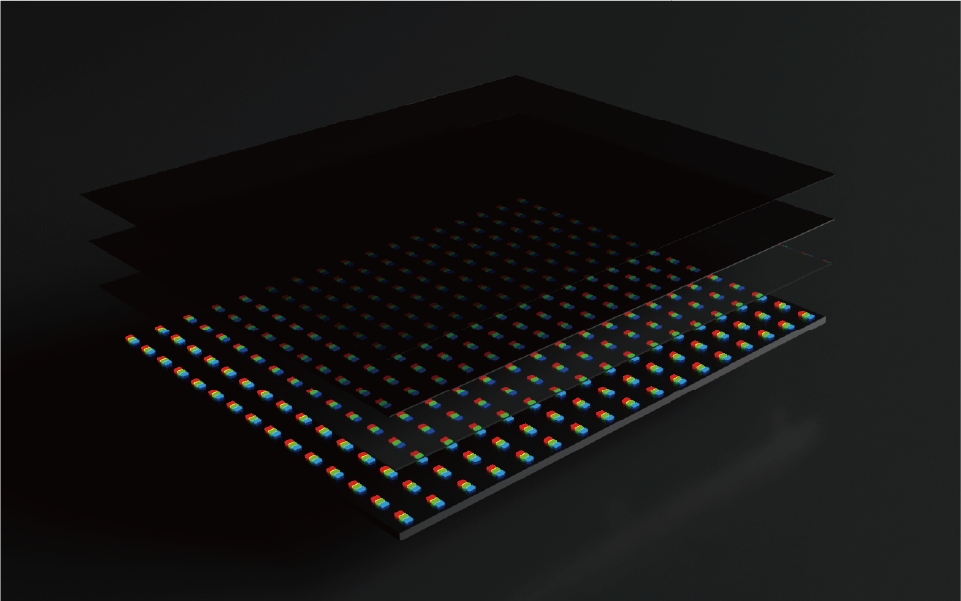

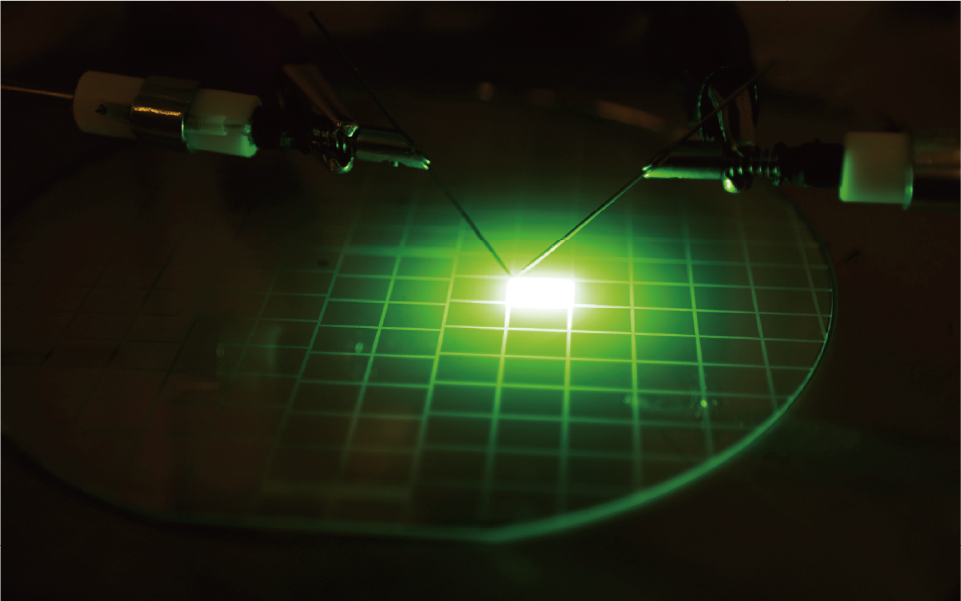

Flip-chip COB Packaging

Each pixel is composed of RGB full flip-chip integrated packaging. and fixed on the circuit board separately, which accelerates heat dissipation and the surface temperature of the screen is low.

Convenient Maintenance

The box can be installed against the wall. The module, system card and power supply are all supports front maintenance.

Enhanced Black Levels and Contrast

SkyFlex’s next-gen ink technology enhances black performance, achieving a high contrast ratio of 5000:1

Sturdy and durable

IP65 protection level, long-term thermal expansion and contraction test, screen surface temperature ≤ 40 ℃, long service life

Specification

HA-C02 Series

Product	HA-061C02	HA-071C02	HA-091C02	HA-121C02	HA-151C02	HA-181C02
Pixel Pitch (mm)	0.6	0.7	0.9	1.2	1.5	1.8
Cabinet Material	Die-cast aluminum
Brightness (Nits)	600
Cabinet Size (WxHxD/mm)	600x337.5
Refresh Rate(Hz)	3840
Gray Scale(Bit)	13
IP Rating(Front/Rear)	IP65/IP30
Maintenance	Front maintenance

The product images and screen contents on this page are for illustrative purposes only. Actual product appearance (including but not limited to design, color, and dimensions) and screen display contents (including but not limited to backgrounds, UI, and illustrations) may slightly vary. Please refer to the actual product.

The HA-C02 Series includes the following models: HA-061C02、HA-071C02、HA-091C02、HA-121C02、HA-151C02、HA-181C02. The barcode encoding rule on the back of the product module is as follows: PXL8 HA-061C02 DC250101XX-X 000X. Here, “PXL8” represents the factory identification and verification code, “HA-061C02” indicates the product model, “DC250101XX-X” is the order number, and “000X” represents the module’s sequential code. (Note: “X” indicates a specific number.)

To provide the most accurate product details, specifications, and features, SkyFlex reserves the right to adjust and update textual descriptions, images, and other content on the webpage in real-time, ensuring consistency with the actual product’s performance, specifications, metrics, and components.

Due to real-time changes in product batches and production supply factors, modifications may occur without prior notice. We apologize for any inconvenience caused. For the latest updates, please refer to the official website.
