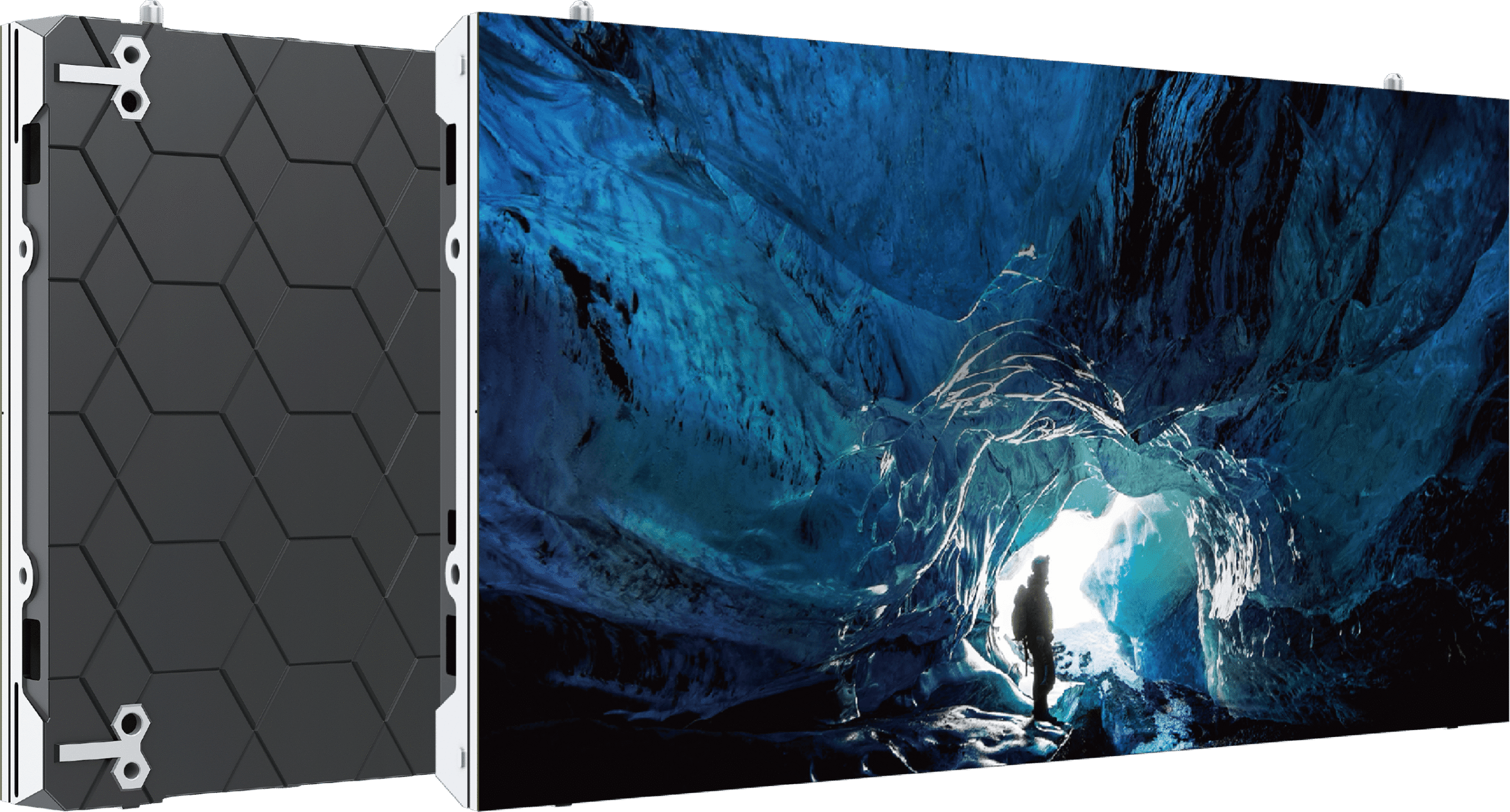

HA-S Series

Ultra-High-Definition Indoor Fine-Pitch LED Display.

The HA-S series is a new generation of ultra-high-definition indoor fine-pitch LED display products covering mainstream indoor applications. With the core positioning of "ultra-slim and light, seamless HD display, full front maintenance, and stable dual-backup operation", it aims to provide space-saving, easy-to-service and reliable visualization solutions for security monitoring centers, command & dispatch rooms, video conferencing rooms, studio halls, etc.

Support

Download

Connect

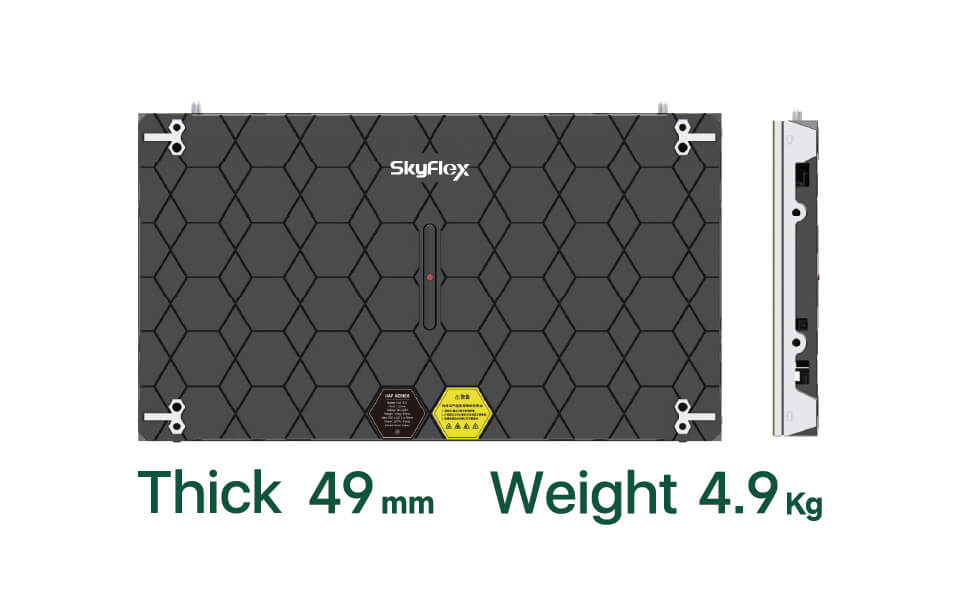

Extremely Light And Slim

Adopt die-casting modular design, 16:9 ratio design,cabinet width only 49 mm, saving the installation spaceand edge covering cost.

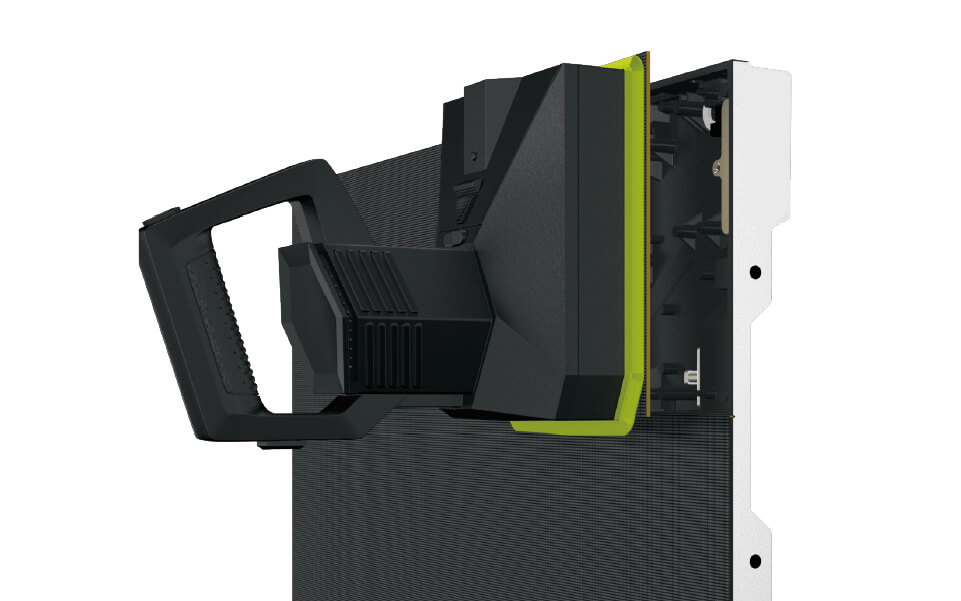

Easy Maintenance

Available for installation on the wall, full front maintenancefor the modules, receiving cards, and power suppliers,support multiple installation methods.

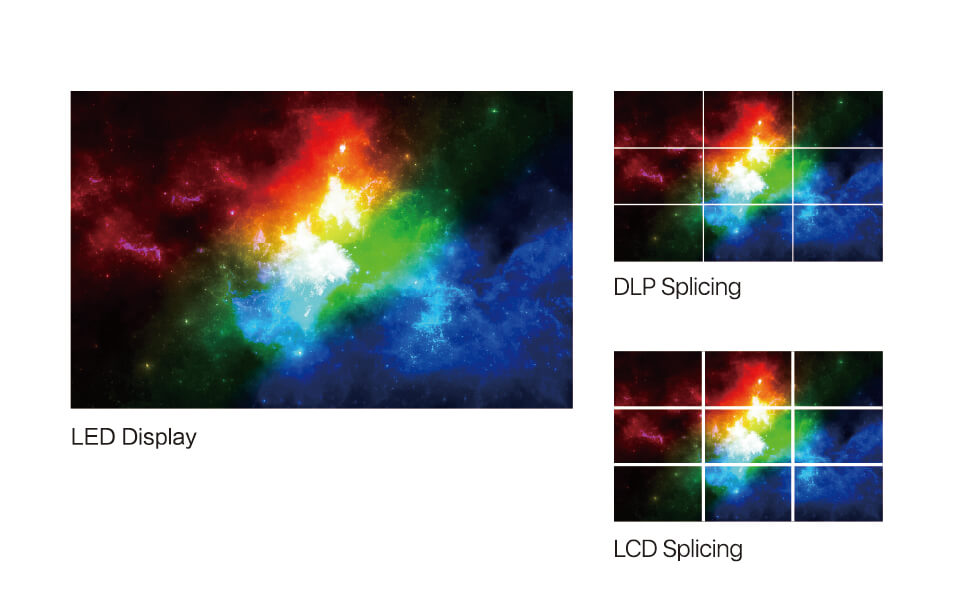

HD Seamless Display

HD Seamless Display, eliminate the visual seam, and enjoy the big, complete display effect.

High Gray & Refresh,Flawless Display

Low brightness yet high gray scale and high refresh rate deliver stable dynamic images without ripple or flicker, with sharp edges and comfortable viewing.

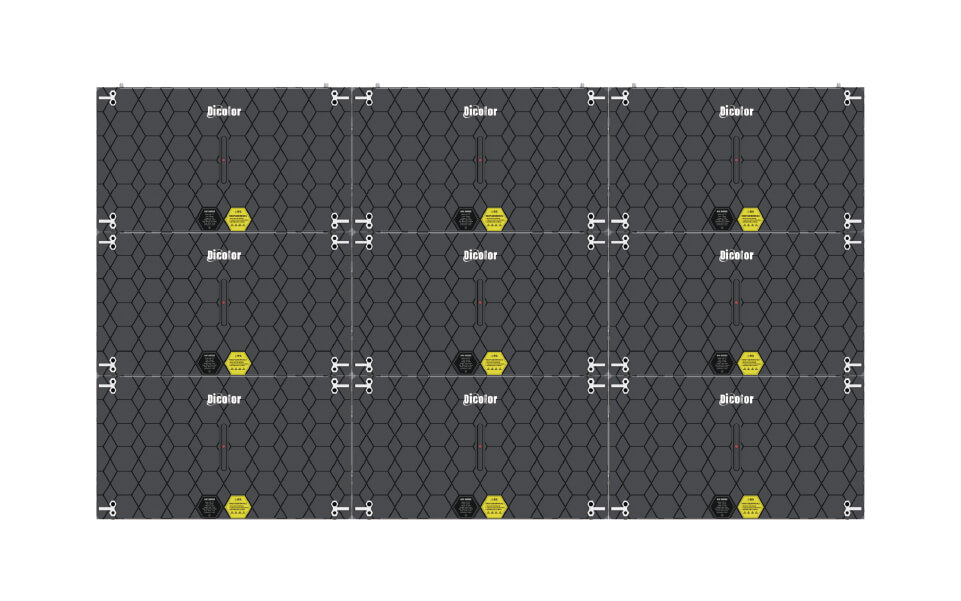

Hidden Cables

The back of the HA series is neat and beautiful, making the product easier to operate and less susceptible to failure.

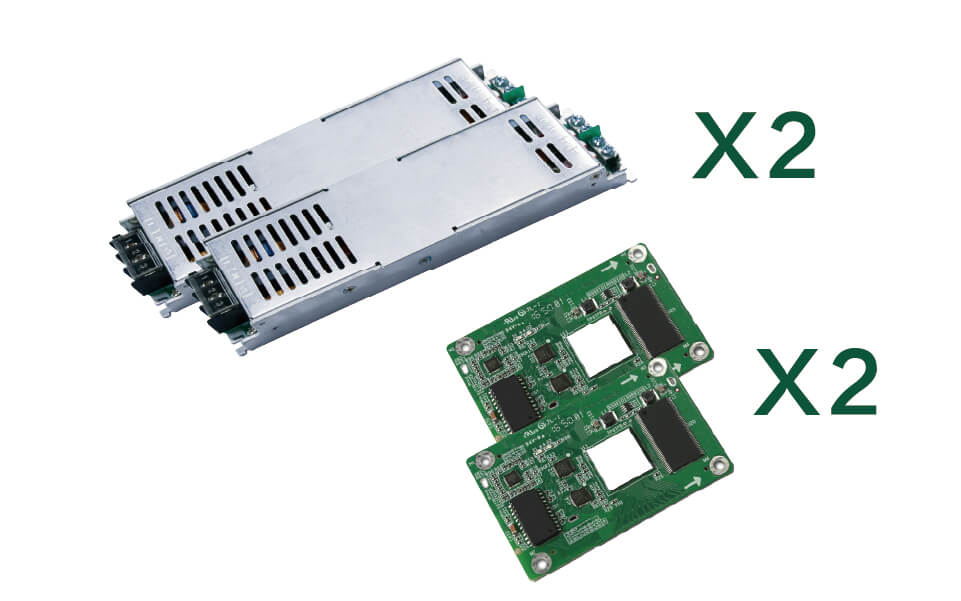

Dual-backup Design

Dual-backup design of the power and signal, making the fine pixel products more steady and reliable.

Specification

HA-S Series

Product	HA-S Series
Pixel Pitch (mm)	0.9375	1.25	1.5625	1.875
LED Package	MIP0606	SMD1010	SMD1212	SMD1415
Cabinet Size (mm)	600x337.5x49
Module Dimension (mm)	300x168.75
Cabinet Weight (Kg/pc)	4.9
Brightness (Nit)	600
Refresh Rate(Hz)	≥3840Hz
Gray Scale(Bit)	13
Maintenance Method	Front‑Service
Power Consumption(W）	400/133	700/233	400/133	350/117
IP Rating	IP40/IP21
Certifications	CE\ETL\FCC\PSE
※ Specifications are subject to change without prior notice. Please refer to the actual product.

The product images and screen contents on this page are for illustrative purposes only. Actual product appearance (including but not limited to design, color, and dimensions) and screen display contents (including but not limited to backgrounds, UI, and illustrations) may slightly vary. Please refer to the actual product.

HA-S Series. The barcode encoding rule on the back of the product module is as follows: PXL8 MP-260V2 DC250101XX-X 000X. Here, “PXL8” represents the factory identification and verification code, “MP-260V2” indicates the product model, “DC250101XX-X” is the order number, and “000X” represents the module’s sequential code. (Note: “X” indicates a specific number.)

To provide the most accurate product details, specifications, and features, SkyFlex reserves the right to adjust and update textual descriptions, images, and other content on the webpage in real-time, ensuring consistency with the actual product’s performance, specifications, metrics, and components.

Due to real-time changes in product batches and production supply factors, modifications may occur without prior notice. We apologize for any inconvenience caused. For the latest updates, please refer to the official website.
