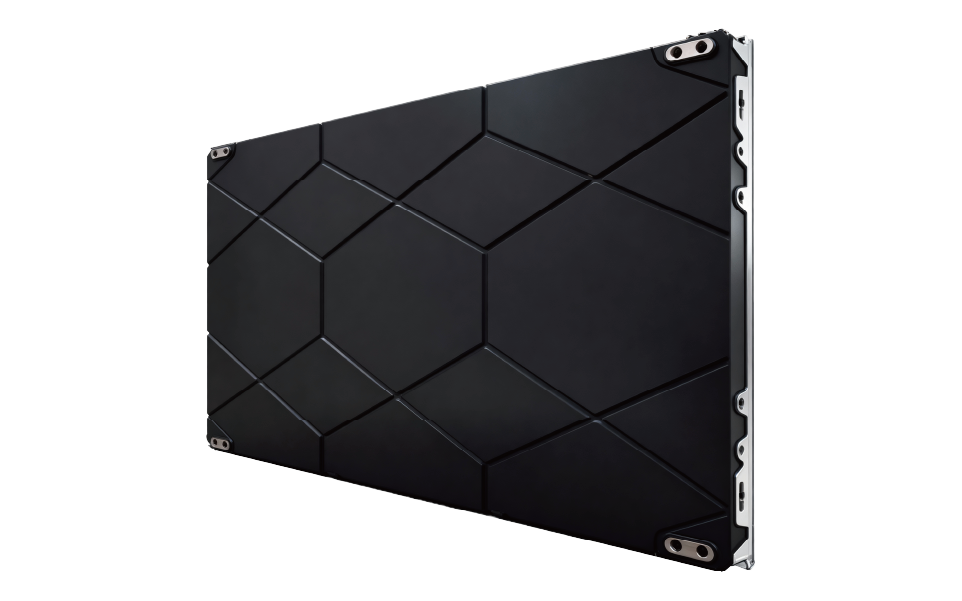

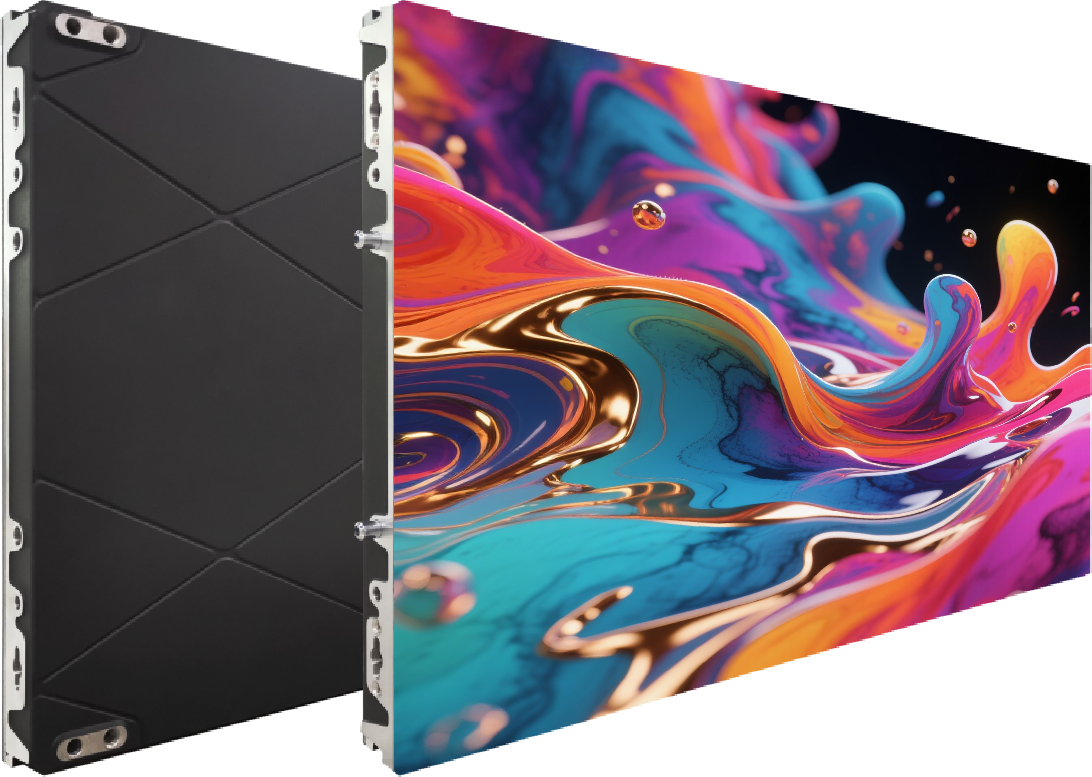

HA-S01 Series
Ultra-High-Definition Indoor Fine-Pitch LED Display.
The HA-S01 Series features advanced SMD technology for superior color accuracy and brightness, ensuring clear and vibrant visuals in indoor environments. Built for fixed installation, it offers seamless performance, durability, and energy efficiency, making it perfect for a wide range of commercial applications, including retail displays, corporate signage, and more.
Slim and Space-Saving

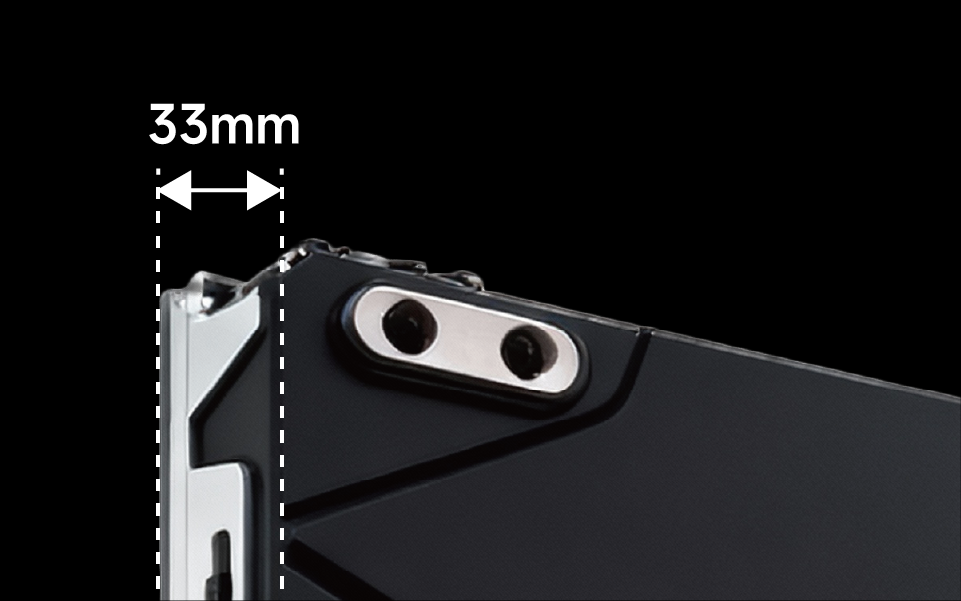

Die-cast modular design with 33mm thickness, saving installation space and edging costs.
Hidden Wiring Design
Internal high-density connectors and external invisible cables reduce wiring, saving labor and improving stability.
Golden Display Ratio
16:9 aspect ratio, perfectly matching HD, 4K, and 8K resolution standards.
High-Definition Display
Deep color gamut, high color depth, high contrast, and HDR support.
Dual Backup
Dual signal and power backup for enhanced stability and reliability.
Easy Maintenance
Full front maintenance with internal cable management and wall-mounted installation, saving space and ensuring aesthetic appeal.
Specification
| Product | HA-121S01 | HA-151S01 | HA-181S01 |
| Pixel Pitch (mm) | 1.2 | 1.5 | 1.8 |
| Cabinet Material | Die-cast aluminum | ||
| Brightness (Nits) | 600 | ||
| Cabinet Size (WxHxD/mm) | 600x337.5 | ||
| Refresh Rate(Hz) | 3840 | ||
| Gray Scale(Bit) | 12 | ||
| IP Rating(Front/Rear) | IP50 | ||
| Maintenance | Front maintenance | ||
The product images and screen contents on this page are for illustrative purposes only. Actual product appearance (including but not limited to design, color, and dimensions) and screen display contents (including but not limited to backgrounds, UI, and illustrations) may slightly vary. Please refer to the actual product.
The HA-S01 Series includes the following models: HA-121S01、HA-151S01、HA-181S01. The barcode encoding rule on the back of the product module is as follows: PXL8 HA-121S01 DC250101XX-X 000X. Here, “PXL8” represents the factory identification and verification code, “HA-121S01” indicates the product model, “DC250101XX-X” is the order number, and “000X” represents the module’s sequential code. (Note: “X” indicates a specific number.)
To provide the most accurate product details, specifications, and features, SkyFlex reserves the right to adjust and update textual descriptions, images, and other content on the webpage in real-time, ensuring consistency with the actual product’s performance, specifications, metrics, and components.
Due to real-time changes in product batches and production supply factors, modifications may occur without prior notice. We apologize for any inconvenience caused. For the latest updates, please refer to the official website.
