LinkHUB Series

Having a meeting is so easy.

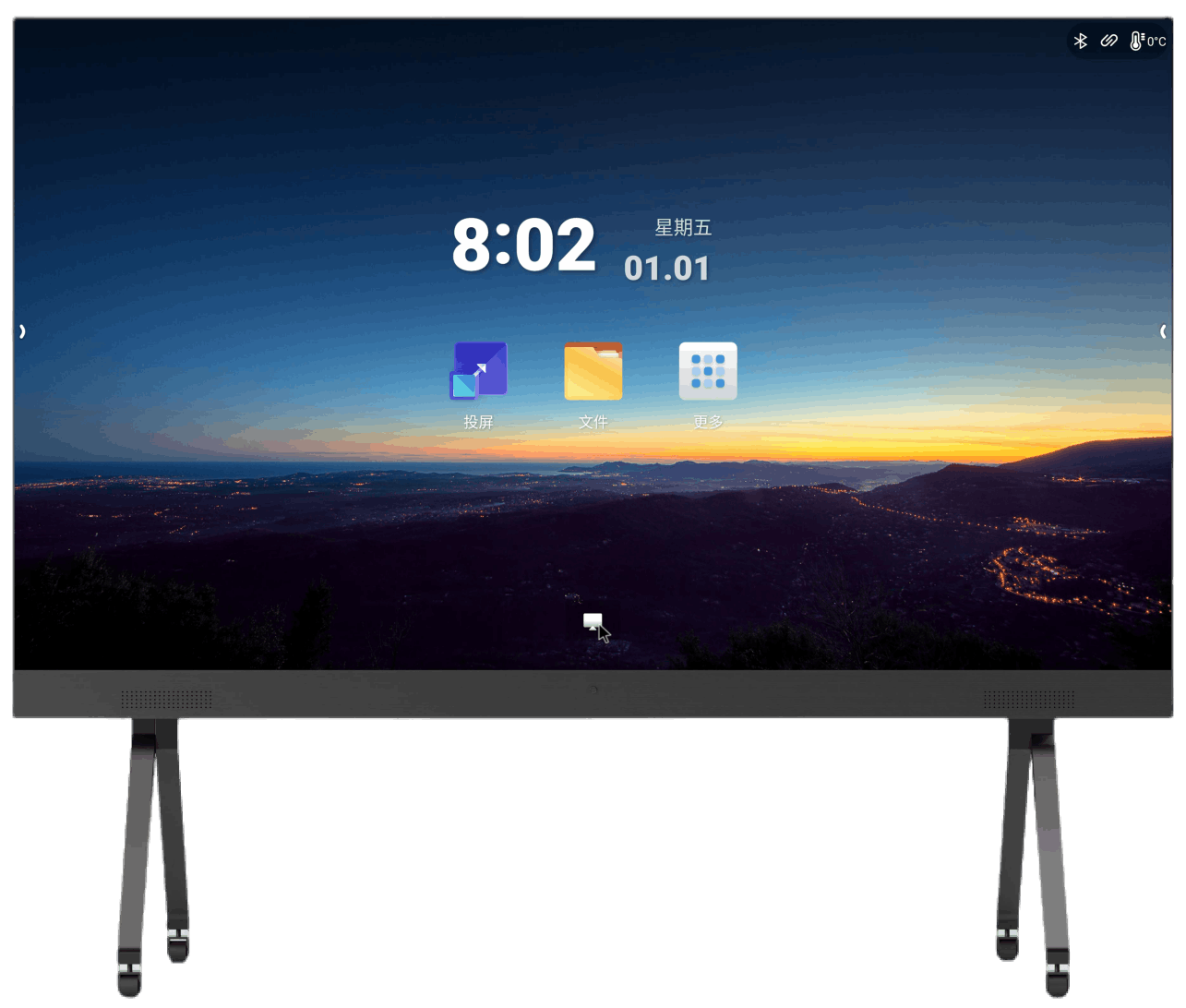

The LinkHUB series is a new generation of all-in-one intelligent LED conference displays built for modern workplace collaboration. With the core positioning of "all-in-one integration, infrared touch writing, wireless screen casting, and dual-OS smart collaboration", it aims to deliver simple, efficient and cable-free meeting solutions for conference rooms, lecture halls, auditoriums, corporate lobbies, exhibition venues, etc.

Support

Download

Connect

All-in-One Integration

Integrates display, speakers, remote control, touch operation and computer screen projection all in one. One device is all you need for meetings.

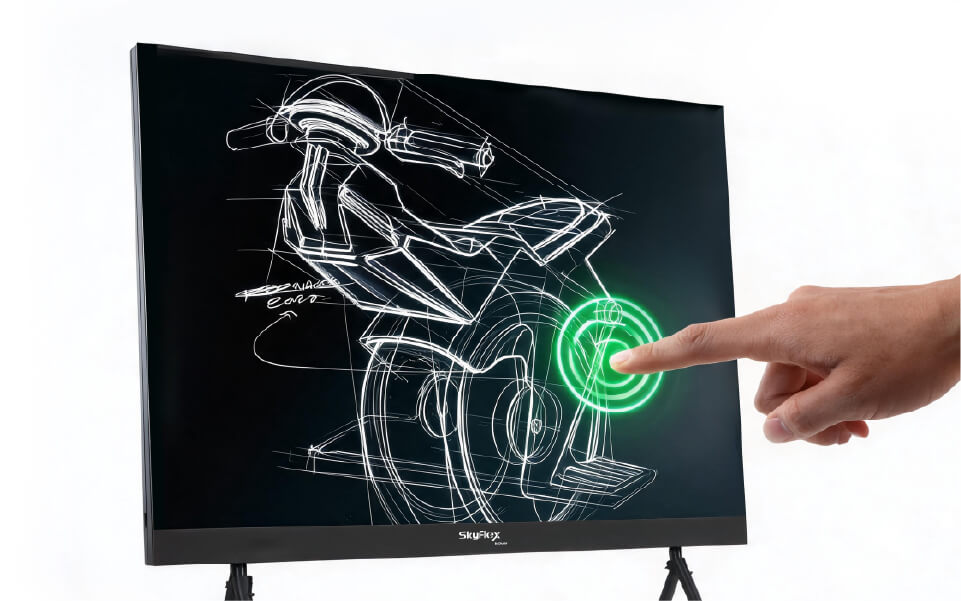

Infrared Touch Control

Ten fingers at once: tap, swipe, write smoothly with zero lag.Let your fingertips spark brand-new creativity.

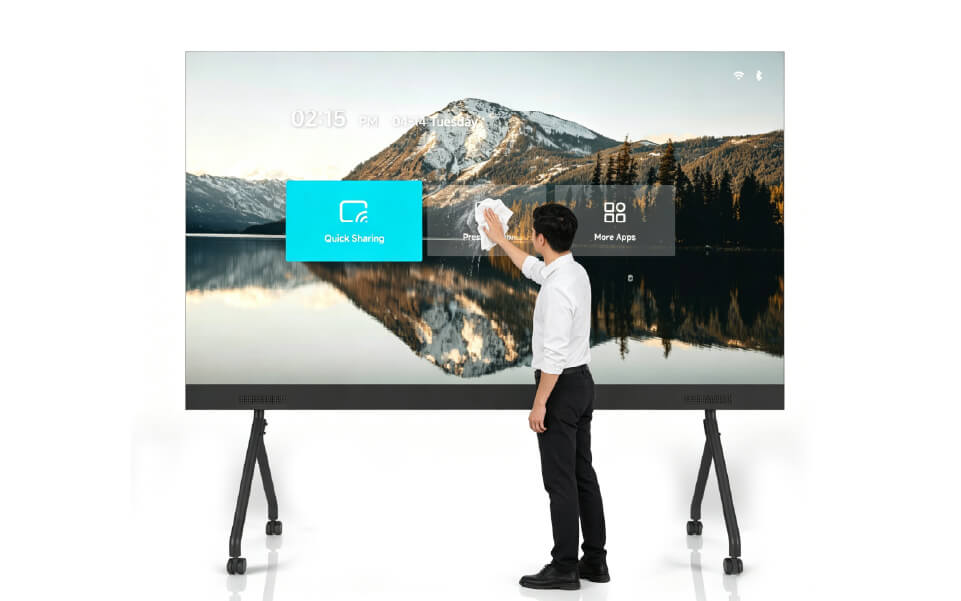

Fast Install & Easy Maintenance

Integrated cabinet assembles by 2 people in 2 hours; plug power to start meetings instantly, mount on wall or mobile stand freely, and wipe with damp cloth for easy daily cleaning.

Dual Intelligent OS

Android 13.0: Ideal for collaborative whiteboarding, brainstorming, and training presentations. Windows 10: Runs office software smoothly, making remote video confer-ences across locations more effortless.Android 13.0: Ideal for collaborative whiteboarding, brainstorming, and training presentations. Windows 10: Runs office software smoothly, making remote video confer-ences across locations more effortless.

Energy Efficient

Standby power consumption ≤ 0.5W per hour No more worries about high power consumption.

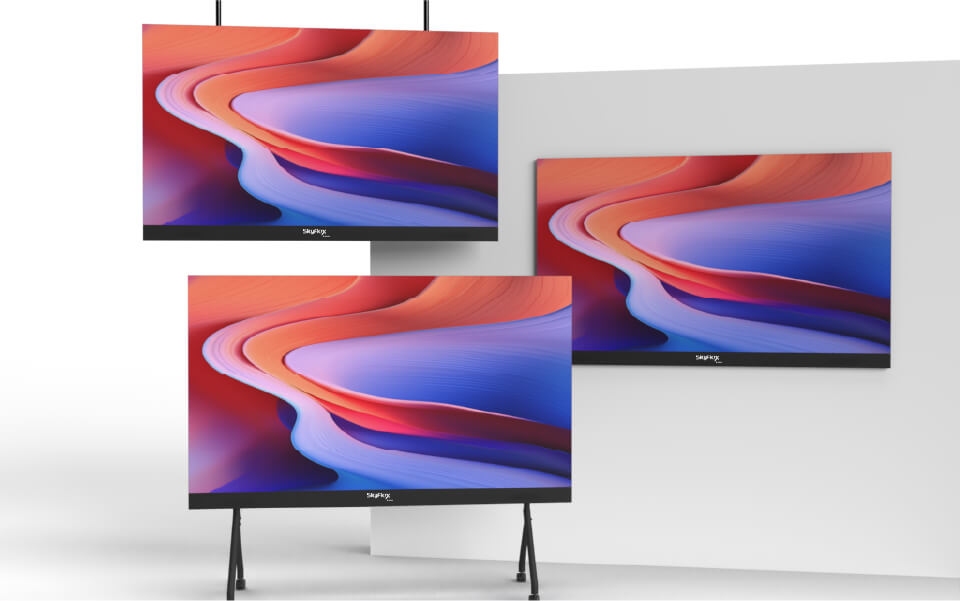

Multiple Installation Methods

Can be wall-mounted, or installed with a mobile stand— flexible to fit any environment.

Specification

LinkHUB Series

Product	LinkHUB Series
Display Size (inch)	108	135	162
Pixel Pitch (mm)	1.25	1.5625	0.9375
LED Package	Flip-chip COB	Flip-chip COB	Flip-chip COB
Cabinet Size (mm)	2412x1470.9x34	3012x1808.4x34	3612x2145.9x34
Module Dimension (mm)	150x168.75
Cabinet Weight (Kg/pc)	80	156	188
Brightness (Nit)	300-600cd/㎡（8-level adjustable)
Refresh Rate(Hz)	≥3840Hz
Gray Scale(Bit)	16
Maintenance Method	Front‑Service
Power Consumption(W）	1450/655	3580/1450	6000/2200
IP Rating	IP65/IP30
Certifications	/
※ Specifications are subject to change without prior notice. Please refer to the actual product.

The product images and screen contents on this page are for illustrative purposes only. Actual product appearance (including but not limited to design, color, and dimensions) and screen display contents (including but not limited to backgrounds, UI, and illustrations) may slightly vary. Please refer to the actual product.

LinkHUB Series. The barcode encoding rule on the back of the product module is as follows: PXL8 MP-260V2 DC250101XX-X 000X. Here, “PXL8” represents the factory identification and verification code, “MP-260V2” indicates the product model, “DC250101XX-X” is the order number, and “000X” represents the module’s sequential code. (Note: “X” indicates a specific number.)
