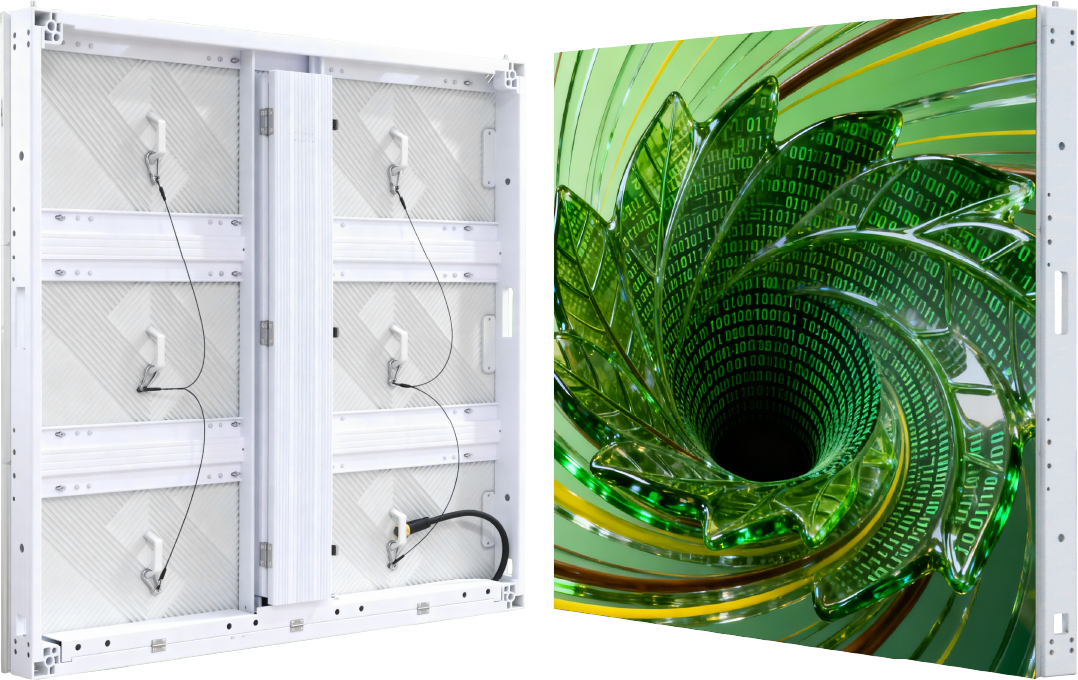

M-W Series
Durable and high-performance solution for outdoor advertising.
The M-W Series is a rugged, high-performance LED display solution designed specifically for outdoor advertising. Built to withstand harsh weather conditions, it offers exceptional brightness, clarity, and durability, ensuring vivid, impactful visuals even in direct sunlight. With its robust construction, the M-W Series is perfect for billboards, transit stations, and outdoor events, providing a reliable and long-lasting display for dynamic advertising content.
Eco-Friendly
The third-generation energy-saving technology reduces power consumption by over 20%, lowering operational costs while maintaining environmental sustainability, making it an ideal choice for energy-conscious applications.
Safe ＆ Reliable
The aluminum bottom shell with 5VB fireproof rating and multi-layer waterproof design (IP65 protection) ensure exceptional stability and safety, offering reliable performance in challenging environments.

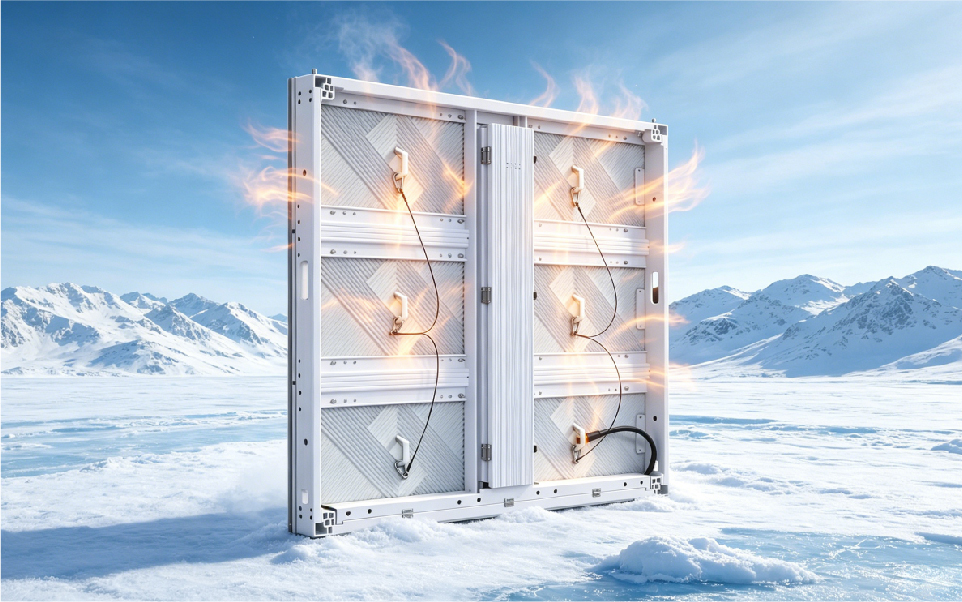

Efficient Heat Dissipation
Constructed with full aluminum material for superior heat conductivity, and featuring a textured heat dissipation design on the bottom shell, this product effectively manages heat for enhanced performance and longevity.
Outstanding Display
With ultra-high brightness, a contrast ratio up to 10,000:1, a 3840Hz refresh rate, and 14-bit grayscale, this series delivers exceptional clarity and vivid visuals in any lighting condition.
Specification
| Product | M-W Series | ||||
| Pixel Pitch (mm) | 4.44 | 5.71 | 6.67 | 8 | 10 |
| LED Package | SMD1921 | SMD2727 | |||
| Cabinet Size (mm) | 960x960 | ||||
| Module Dimension (mm) | 480x320 | ||||
| Cabinet Weight (Kg/pc) | 25 | ||||
| Brightness (Nit) | 6000-7500 | 7000-10000 | |||
| Refresh Rate(Hz) | 7680 | ||||
| Gray Scale(Bit) | 14 | ||||
| Maintenance Method | Front‑ & Rear‑Service | ||||
| Power Consumption(W） | 650-720/217-240 | 690-750/230-250 | |||
| IP Rating | IP65 | ||||
| Certifications | / | ||||
| ※ Specifications are subject to change without prior notice. Please refer to the actual product. | |||||
The product images and screen contents on this page are for illustrative purposes only. Actual product appearance (including but not limited to design, color, and dimensions) and screen display contents (including but not limited to backgrounds, UI, and illustrations) may slightly vary. Please refer to the actual product.
The M-W Series includes the following models: M-440W、M-570W、M-660W、M-800W、M-100W. The barcode encoding rule on the back of the product module is as follows: PXL8 M-440W DC250101XX-X 000X. Here, “PXL8” represents the factory identification and verification code, “M-440W” indicates the product model, “DC250101XX-X” is the order number, and “000X” represents the module’s sequential code. (Note: “X” indicates a specific number.)
To provide the most accurate product details, specifications, and features, SkyFlex reserves the right to adjust and update textual descriptions, images, and other content on the webpage in real-time, ensuring consistency with the actual product’s performance, specifications, metrics, and components.
Due to real-time changes in product batches and production supply factors, modifications may occur without prior notice. We apologize for any inconvenience caused. For the latest updates, please refer to the official website.
