MS-V201 Series
Versatile in size, designed for commercial display applications.

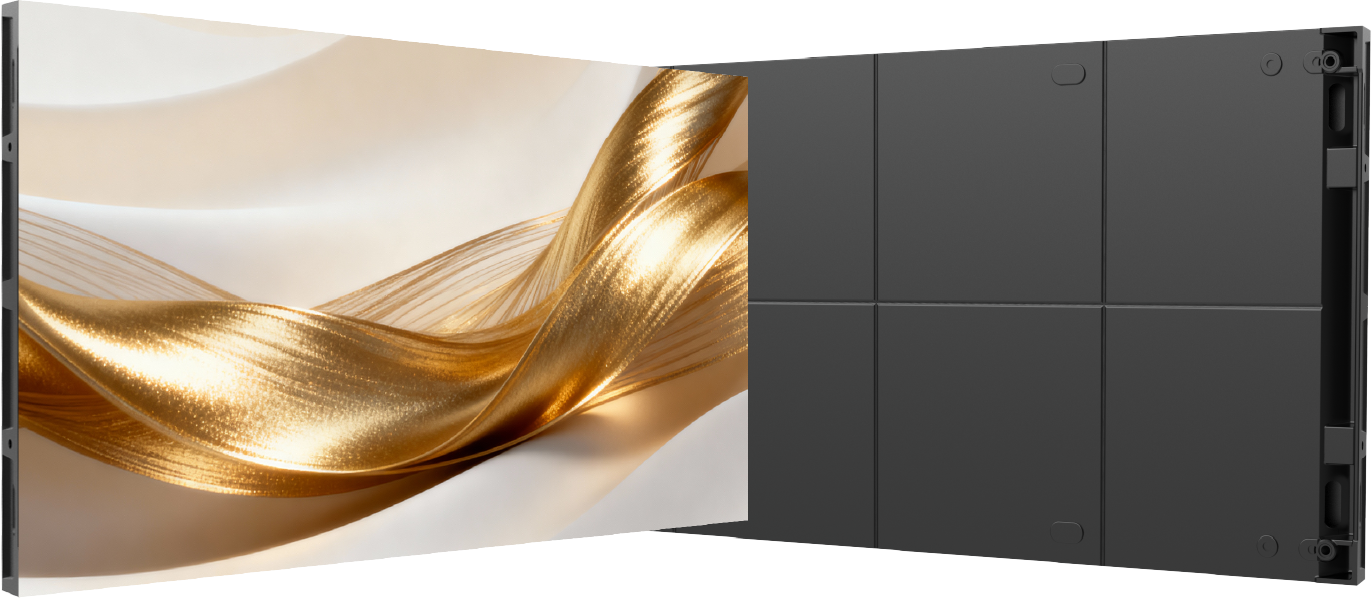

The MS-V201 series is a versatile LED display solution designed to meet the demands of commercial display applications. With flexible sizing options, it adapts seamlessly to a wide range of environments, from retail and corporate spaces to trade shows and exhibitions. Offering high-resolution, vibrant color performance, the MS-V201 ensures stunning visuals that capture attention.
Various sizes

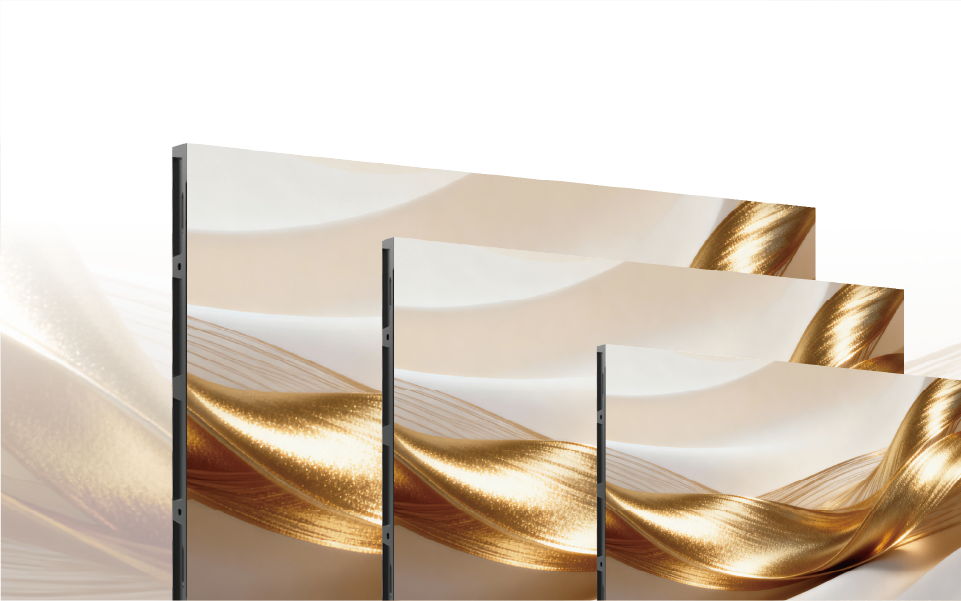

The series offers 6 cabinet sizes: 1000×500, 750×500, 500×500, 1000×250, 750×250, and 500×250, allowing for flexible size configurations to meet the needs of various scenarios.


Creative Shapes

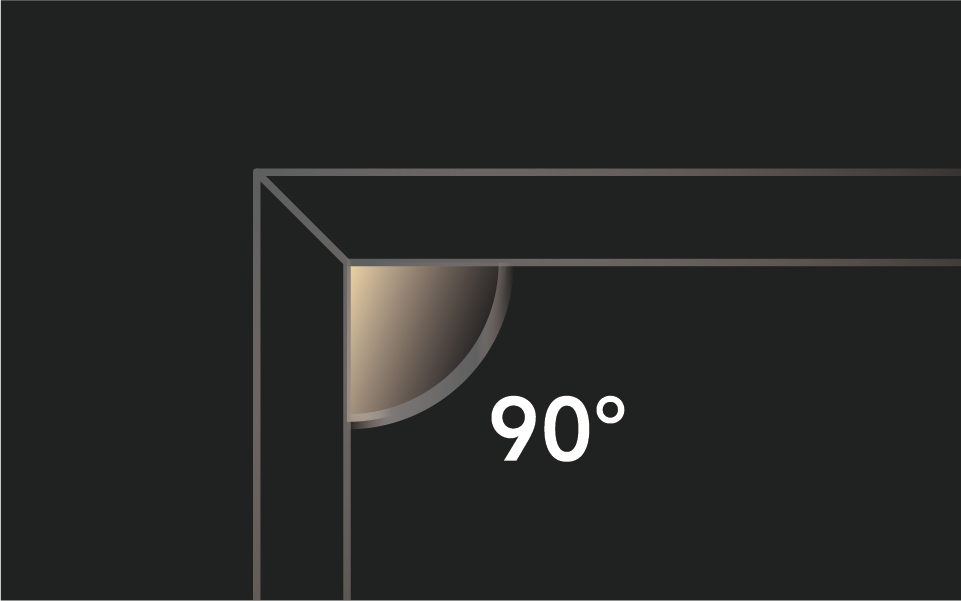

With a 90° beveled corner design, the cabinets can be connected at right angles and support creative shapes like inner and outer curves.
Ultra-Light and Slim

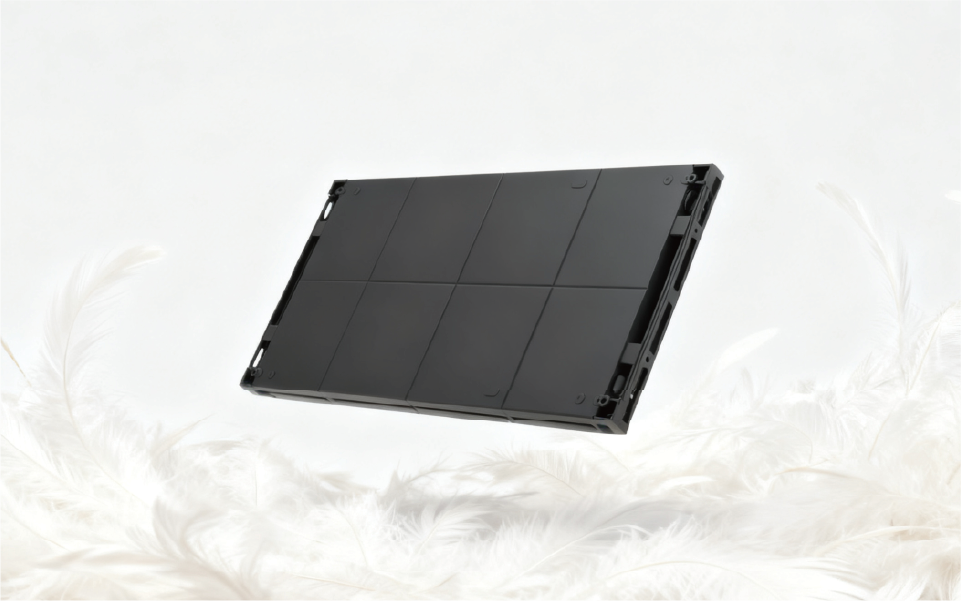

Weighing only 23kg per square meter and with a thickness of 40mm, the slim cabinet can be mounted flush against the wall, minimizing the installation space required.


Full Front Maintenance

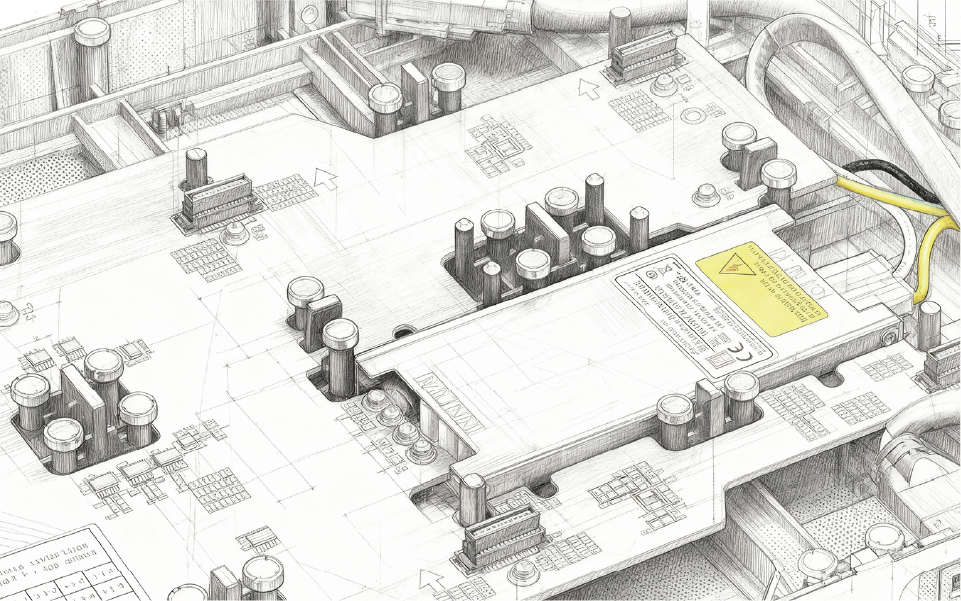

All components (such as the power supply, receiving cards, and modules) are front-maintainable.
High Precision
The all-in-one die-cast aluminum design with no bottom casing ensures the display’s flatness and presents a consistent visual effect.

Specification
| Product | MS-121V201 | MS-151V201 | MS-191V201 | MS-251V201 | MS-261V201 | MS-291V201 | MS-391V201 |
| Pixel Pitch (mm) | 1.2 | 1.5 | 1.9 | 2.5 | 2.6 | 2.9 | 3.9 |
| Module size | 250*250mm | ||||||
| Cabinet Size | 1000*500/750*500/500*500 1000*250/750*250/500*250 |
||||||
| Brightness | ≥600nits | ||||||
| Cabinet Material | Die-casting aluminum | ||||||
| Cabinet Weight | 11.5KG / 8.5KG / 6KG 5.6KG / 4.2KG / 2.8KG |
||||||
The product images and screen contents on this page are for illustrative purposes only. Actual product appearance (including but not limited to design, color, and dimensions) and screen display contents (including but not limited to backgrounds, UI, and illustrations) may slightly vary. Please refer to the actual product.
The MS-V201 Series includes the following models: MS-121V201、MS-151V201、MS-191V201、MS-251V201、MS-261V201、MS-291V201、MS-391V201. The barcode encoding rule on the back of the product module is as follows: PXL8 MS-121V201 DC250101XX-X 000X. Here, “PXL8” represents the factory identification and verification code, “MS-121V201” indicates the product model, “DC250101XX-X” is the order number, and “000X” represents the module’s sequential code. (Note: “X” indicates a specific number.)
To provide the most accurate product details, specifications, and features, SkyFlex reserves the right to adjust and update textual descriptions, images, and other content on the webpage in real-time, ensuring consistency with the actual product’s performance, specifications, metrics, and components.
Due to real-time changes in product batches and production supply factors, modifications may occur without prior notice. We apologize for any inconvenience caused. For the latest updates, please refer to the official website.
