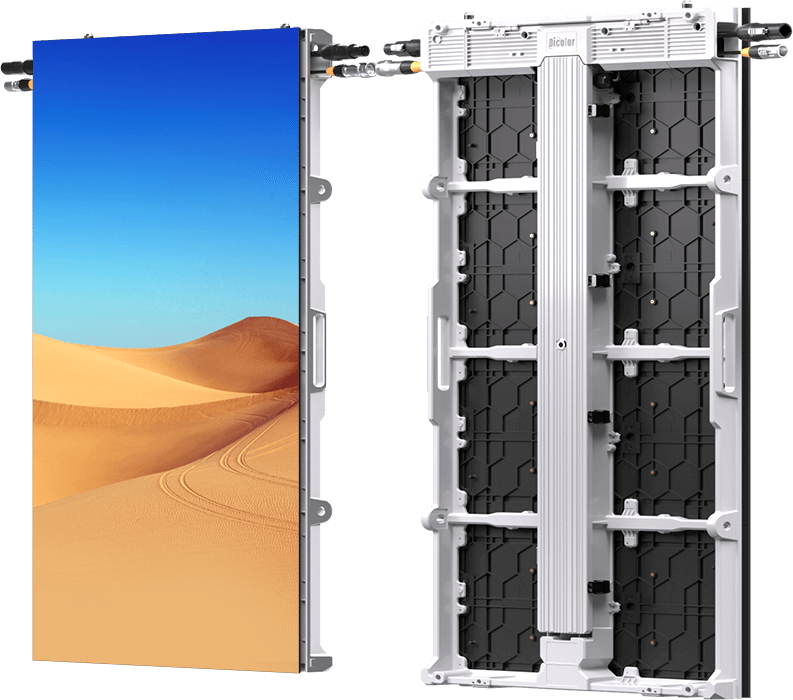

MPV2 Series

Outdoor Fixed Fine Pixel Energy-saving LED Display.

MPV2 is an outdoor fixed fine pixel energy-saving LED display, perfect for high-resolution outdoor visuals. Its energy-efficient design reduces operational costs while maintaining brilliant image quality. Durable and weather-resistant, MPV2 ensures reliable performance in any outdoor setting, making it ideal for advertising and public displays.

Support

Download

Connect

3rd Generation Energy-saving Technology

Precision RGB voltage control, more than 5% cooler temperatures, More than 30% lower power consumption, better color and brightness uniformity, and longer LED lifespan.

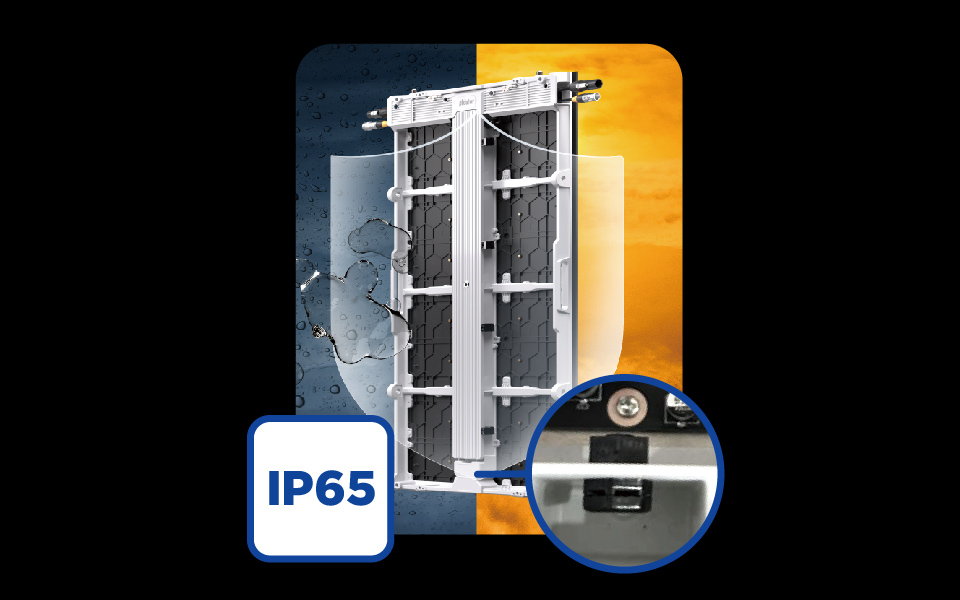

High Stability & Reliability

Ventilating valve device design, modules safe-lock design. Modules independent waterproof design.

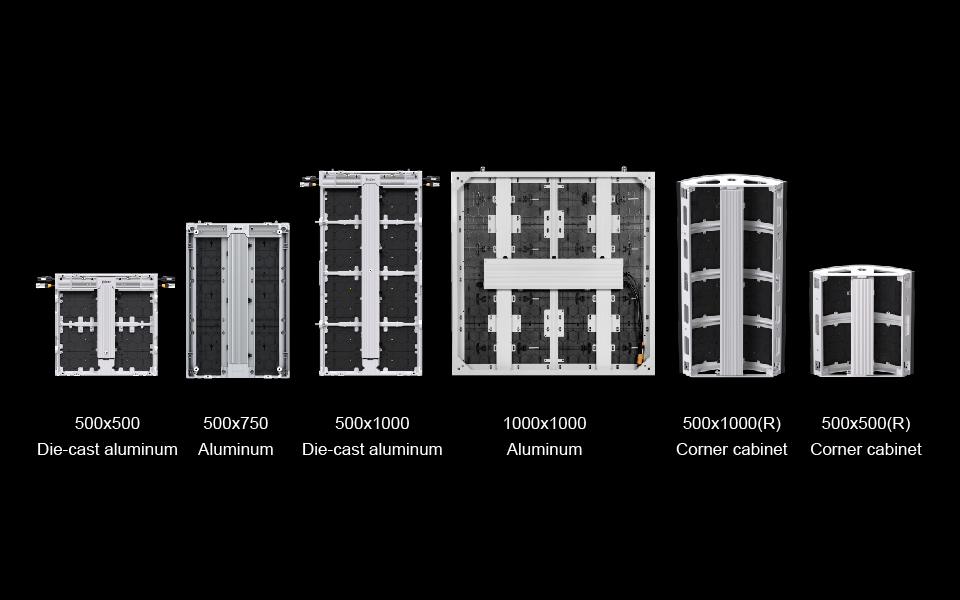

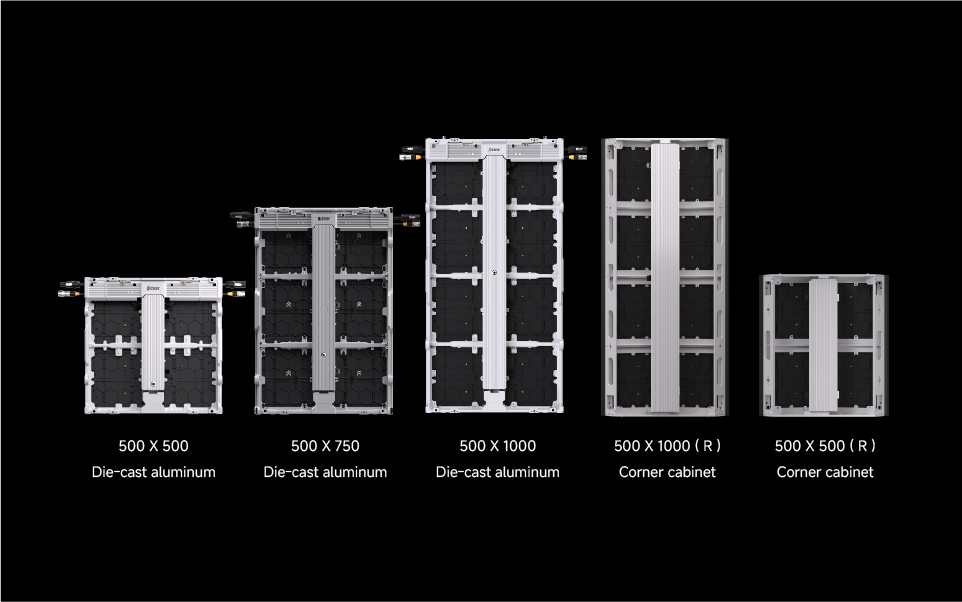

Any Size You Need

Supports 500×500、500×750、500×1000mm sizes and corner cabinet design to meet different installation areas.

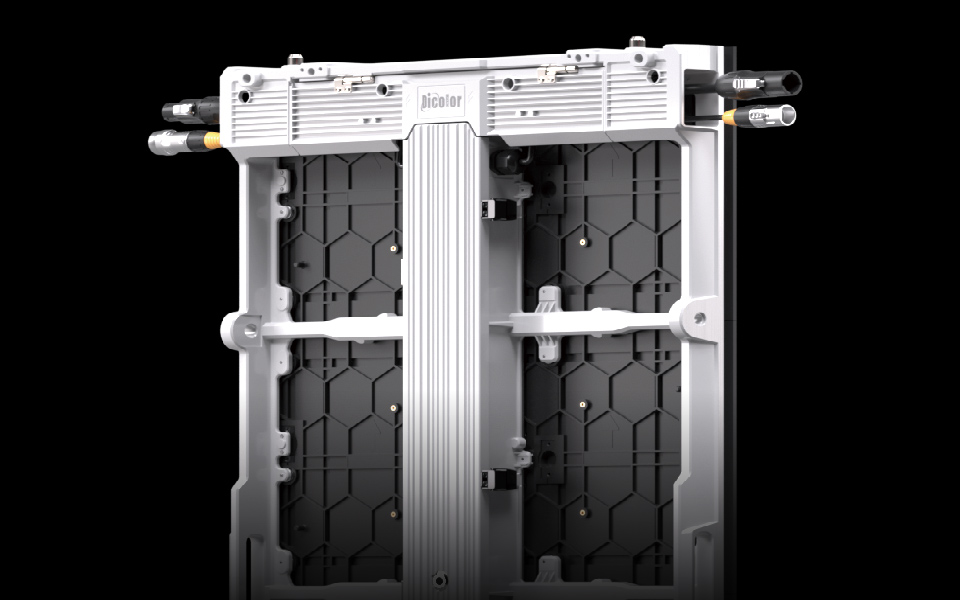

True Color, Stunning Visuals

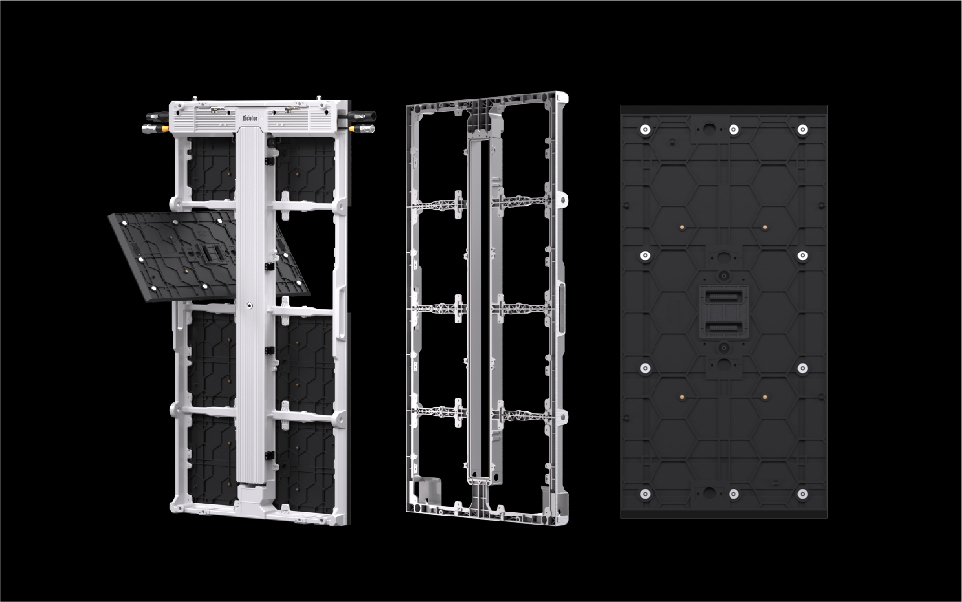

Front and rear maintenance design Maintenance efficiency is increased more than 5 times compared with conventional products, saving time and effort for maintenance.

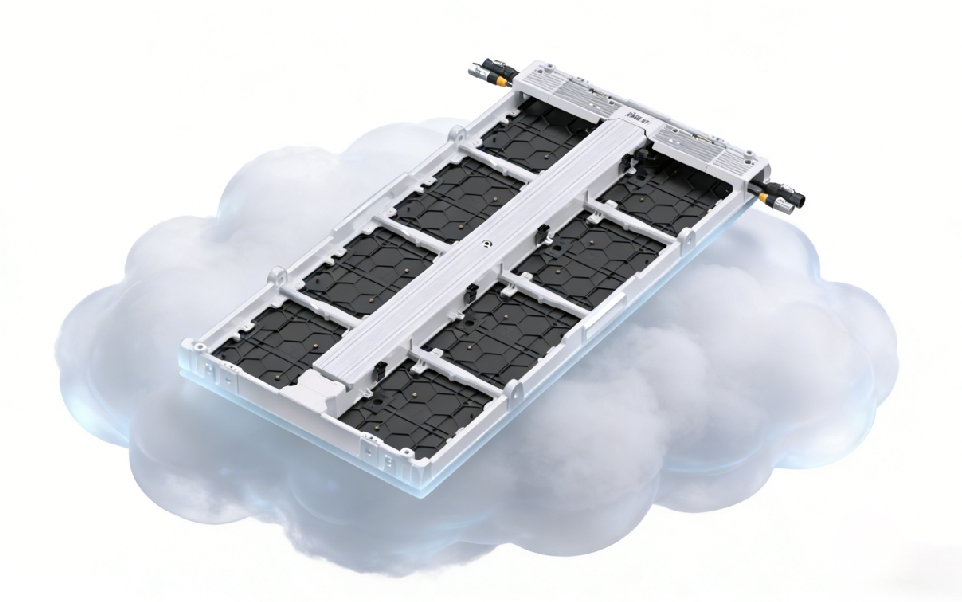

Ultra-thin and ultra-light

With weight as light as 25.2kg/m² and as thin as 68mm, saving installation and transportation costs；

MP V2 Series Showcase

Outdoor Fixed Fine Pitch Energy-saving LED Display

360° Water Spray & 8-Hour Dust Challenge

360° high-pressure water spray. 8 hours in a high-concentration dust chamber—Zero water or dust ingress.

Specification

MP V2 Series

Product	MP V2 Series
Pixel Pitch (mm)	1.9	2.6	2.9	3.9	4.8	5.9
LED Package	GOB (SMD1212)	SMD1515	SMD1515	SMD1921	SMD1921	SMD2727
Cabinet Size (mm)	500x500/500x750/500x1000
Module Dimension (mm)	250x250		500x250
Cabinet Weight (Kg/pc)	9.3/13.3/16.6	7.3/10.3/12.6
Brightness (Nit)	4500	5000
Refresh Rate(Hz)	7680
Gray Scale(Bit)	15	16
Maintenance Method	Front‑ & Rear‑Service
Power Consumption(W）	660/220	560/187	540/180	530/177	530/177	490/164
IP Rating	IP66
Certifications	CE/CB/FCC/ETL
※ Specifications are subject to change without prior notice. Please refer to the actual product.

The product images and screen contents on this page are for illustrative purposes only. Actual product appearance (including but not limited to design, color, and dimensions) and screen display contents (including but not limited to backgrounds, UI, and illustrations) may slightly vary. Please refer to the actual product.

The MP V2 Series includes the following models: MP-190V2、MP-260V2、MP-290V2、MP-390V2、MP-480V2、MP-590V2. The barcode encoding rule on the back of the product module is as follows: PXL8 MP-260V2 DC250101XX-X 000X. Here, “PXL8” represents the factory identification and verification code, “MP-260V2” indicates the product model, “DC250101XX-X” is the order number, and “000X” represents the module’s sequential code. (Note: “X” indicates a specific number.)

To provide the most accurate product details, specifications, and features, SkyFlex reserves the right to adjust and update textual descriptions, images, and other content on the webpage in real-time, ensuring consistency with the actual product’s performance, specifications, metrics, and components.

Due to real-time changes in product batches and production supply factors, modifications may occur without prior notice. We apologize for any inconvenience caused. For the latest updates, please refer to the official website.
